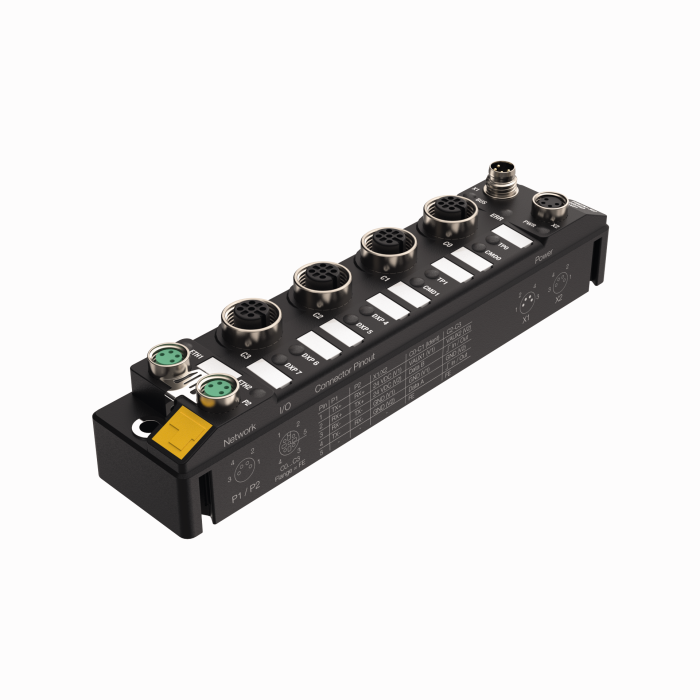

Product TBEN-S2-2RFID-4DXP
Compact Multiprotocol RFID Module for Ethernet
2 RFID Channels (HF/UHF) and 4 Universal Digital Channels, Configurable as PNP Inputs or 0.5-A Outputs
Order number: 6814029- PROFINET device, EtherNet/IP device or Modbus TCP slave
- PROFINET S2 system redundancy
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- ATEX Zone 2/22
- Up to 128 bytes of user data per read/write cycle per channel and use of fragments with 16 kilobytes of FIFO memory each
- Data interface for convenient use of the RFID functions
- Continuous HF bus mode with up to 32 HF read/write heads per channel
- 2 channels with M12 connection for RFID
- 4 universal digital channels, configurable as PNP inputs or 0.5 A outputs
- Programmable ARGEE
General data
| EAN | 4047101310252 |
| eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 235 g |
Technical Data
| Network protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Signal type | RFID, Digital input, Digital input/output, Digital output |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Transmission rate Ethernet | 10/100 Mbps |
| Connection technology Ethernet | 2 x M8, 4-pin, D-coded |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus |
Data Sheets
| German | 464 KB |
| English | 462 KB |
| French | 465 KB |
| Spanish | 464 KB |
| Czech | 465 KB |
| Dutch | 464 KB |
| Romanian | 464 KB |
| Russian | 338 KB |
| Polish | 464 KB |
| Chinese | 546 KB |
| Turkish | 464 KB |
Accessories List
Approval
Configuration File
Configuration Manual

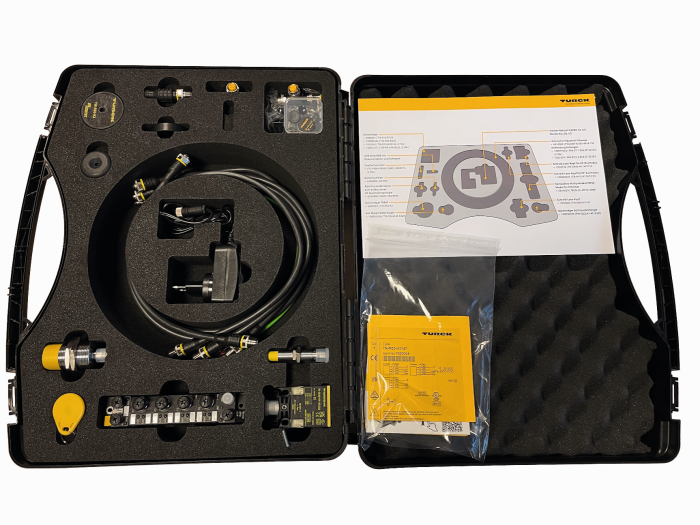

Demo Software
EPLAN Electric P8
Firmware
Function Block/Library
| RFID function block, universal data interface for CODESYS V3 | 1145 KB |
| Function module: RFID universal data interface 128 B and 2 KB for TIA V14, V15 with S7-1200, S7-1500 | 6416 KB |
Manual
| TBEN-S2-2RFID-4DXP manual | 11941 KB |
| Bus mode description | 741 KB |
| Calculation tool for HF bus mode | 100 KB |
