Product RSCV-RKCV5500-2M/S2500
Cable for RFID Application in the Food Industry
Extension Cable
Order number: 6633193- Jacket material: PP-EPDM
- Jacket color: white
- Suitable for drag chain use
- Oil resistant in accordance with EN 60811-2-1
- Free from halogen and silicone
- Particularly resistant to abrasion
- RoHS II/REACH compliant
- Protection class: IP67, IP69K

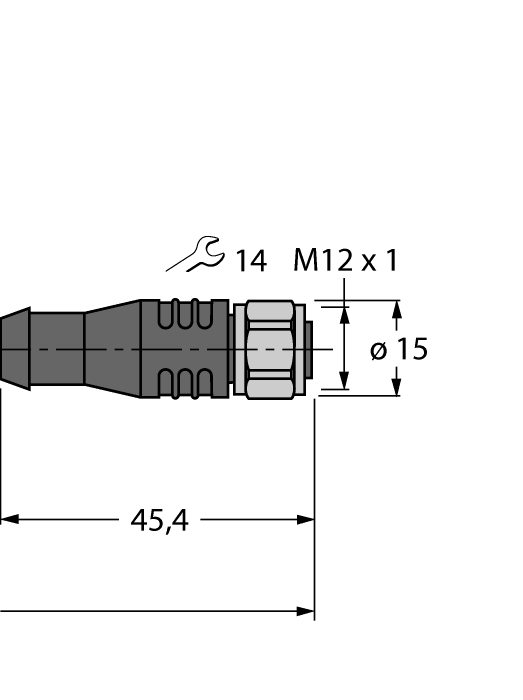

- M12 female connector, straight, stainless steel

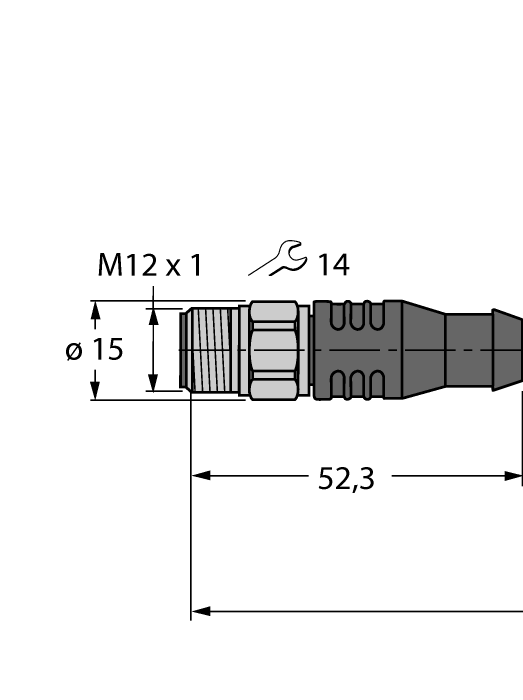

- M12 male connector, straight, stainless steel
- Cable length: 2.0 m
General data
| EAN | 4047101497526 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444290900 |
| Country of origin | CN |
| Weight | 156 g |
Technical Data
| Application | RFID |
| Design | Extension Cable |
| Connector A | Male, M12 × 1, Straight, A-coded |
| Number of pins | 5 |
| Connector body | Plastic, PP, White |
| Coupling nut/screw | Stainless Steel, V4A |
| Connector B | Female, M12 × 1, Straight, A-coded |
| Number of Pins | 5 |
| Connector body | Plastic, PP, White |
| Coupling nut/retaining screw | Stainless Steel, V4A |
| Voltage | 60 V |
| Current | 4 A |
| Cable diameter | Ø 8 mm |
| Cable length | 2.0 m |
| Cable jacket | PP-EPDM, White |
| Number of Conductors | 2 |
| Protection class | IP67, IP69K |
