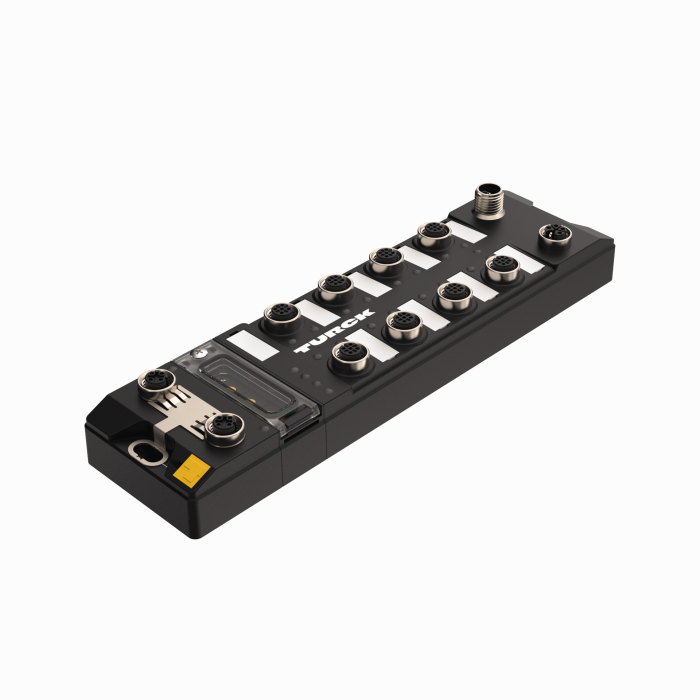

Product TBEN-LLH-4RMC
Compact multiprotocol I/O module for Ethernet
4 Roller Motor Controllers
4 digital PNP inputs, 4 universal digital channels, configurable as PNP inputs or 2A outputs
Order number: 100018352- PROFINET device, EtherNet/IP device or Modbus TCP server
- Integrated Ethernet switch
- Supports 10 Mbps/100 Mbps
- 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- Programmable ARGEE
General data
| EAN | 4047101524055 |
| eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 573 g |
Technical Data
| Network protocol | Modbus TCP, EtherNet/IP, PROFINET |
| Signal type | Roller motor, Digital input, Digital input/output, Digital input |
| Connection technology signal | M12 |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Fieldbus transmission rate | 10/100 Mbps |
| Fieldbus connection technology | 2 × M12, 4-pin, D-coded |
| Ambient temperature | -40…+70 °C |
| Protection class | IP65/IP67/IP69K |
| Approvals | cULus |
Data Sheets
| German | 420 KB |
| English | 418 KB |
| French | 419 KB |
| Spanish | 420 KB |
| Czech | 420 KB |
| Dutch | 418 KB |
| Romanian | 419 KB |
| Russian | 305 KB |
| Polish | 421 KB |
| Chinese | 508 KB |
| Turkish | 420 KB |
Configuration File
General Catalog
Instructions for Use
Manufacturer's Declaration
Product Overview
Programming Example
Technology Flyer
Connectivity accessories
|
VS-M12-PWR
Blanking plug for M12 female connectors |
100034822 |
