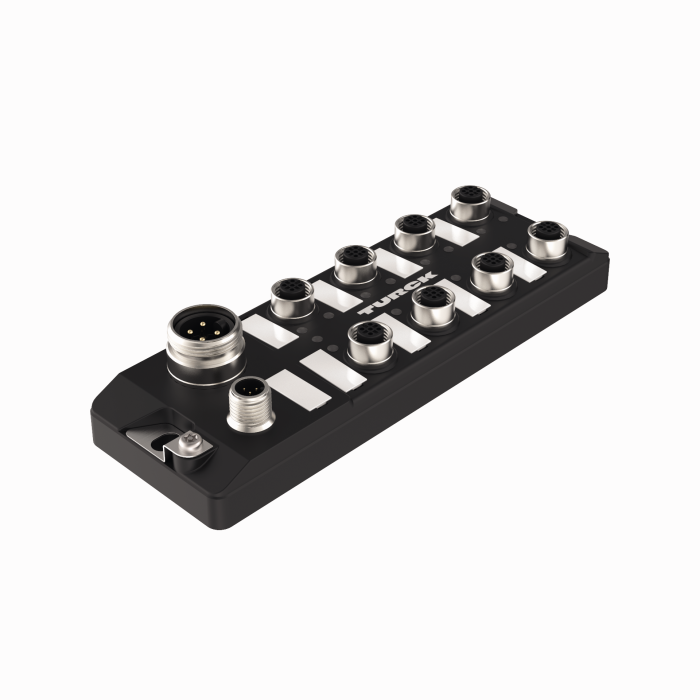

Product TBIL-L4-16DXP-AUX
I/O Hub for Connection of Digital Signals to IO-Link Master
16 Universal Digital Channels, PNP
Order number: 100000883- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K

General data
EAN | 4047101444988 |
eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
Customs tariff number | 85176200000 |
Country of origin | US |
Weight | 408 g |
Technical Data
Network protocol | IO-Link |
Signal type | Digital output, Digital input, Digital input/output |
Connection technology signal | M12 |
Device type | I/O hub, I/O Module, Compact station |
Ambient temperature | -40…+60 °C |
Protection class | IP65/IP67/IP69K |
Approvals | cULus |
