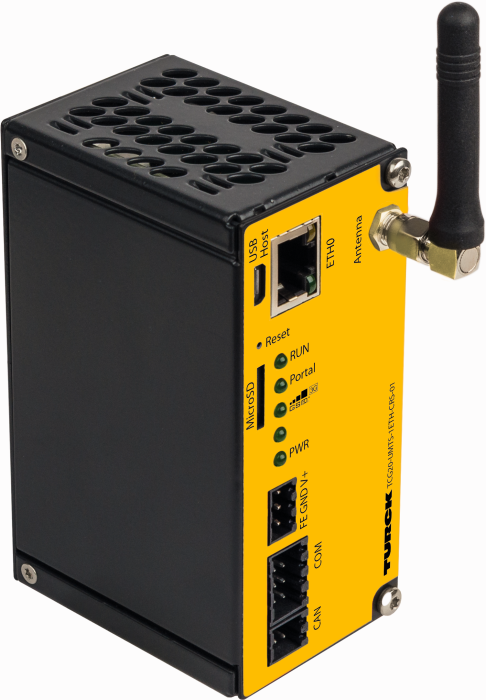

Product TCG20-UMTS-1ETH-CRS-01
Turck Cloud Gateway
UMTS Gateway
Order number: 100002555- End-to-end encryption of all communications (TLS v1.2, AES128/AES256)
- 1x Ethernet port
- 1x CAN interface
- 1x serial interface RS232/RS485
- Modbus TCP client/server
- Modbus RTU master/slave
- OPC-UA server
- CODESYS network variables
- SNMP manager
- OpenVPN client
- WEB PLC programming logic
General data
| EAN | 4047101465037 |
| Customs tariff number | 85176200000 |
| Country of origin | DE |
| Weight | 346 g |
Technical Data
| Product series | TCG20 |
| Device type | Cloud Gateway |
| Protection class | IP20 |
| Interface | 1 × RJ45, CANopen, RS232, RS485 |
| Radio interface | UMTS |
| Fieldbus master | Modbus RTU, Modbus TCP, OPC-UA |
| Fieldbus slave | Modbus RTU, Modbus TCP, OPC-UA |
| Programming | Web-based EDGE-PLC |
| Approvals | CE |
| Ambient temperature | 0…+55 °C |
Mounting accessories
|

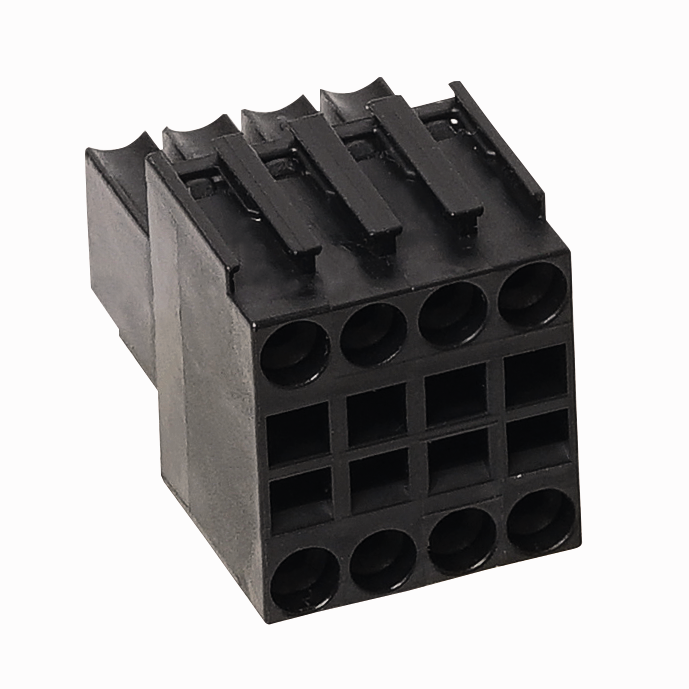

TCG20-RSC
Replacement connector for serial interface. |
100002937 |
|

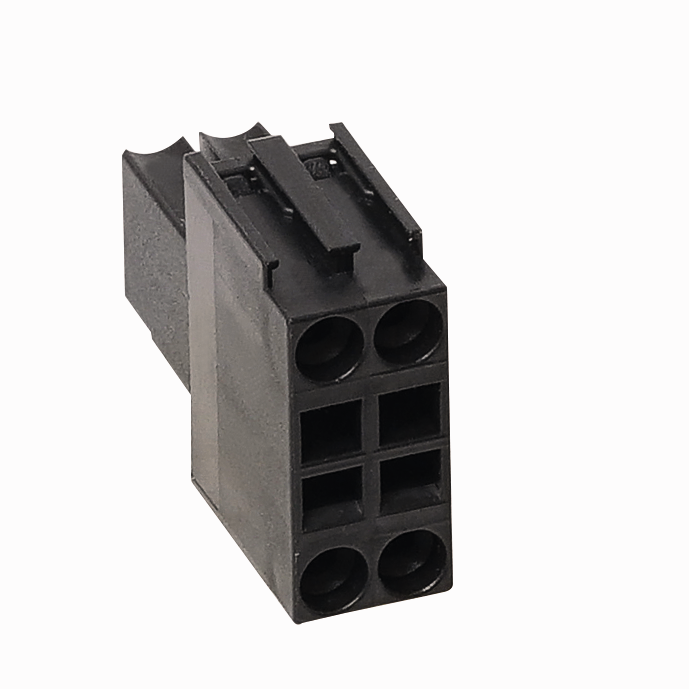

TCG20-CC
Replacement connector for CAN interface. |
100002936 |
|

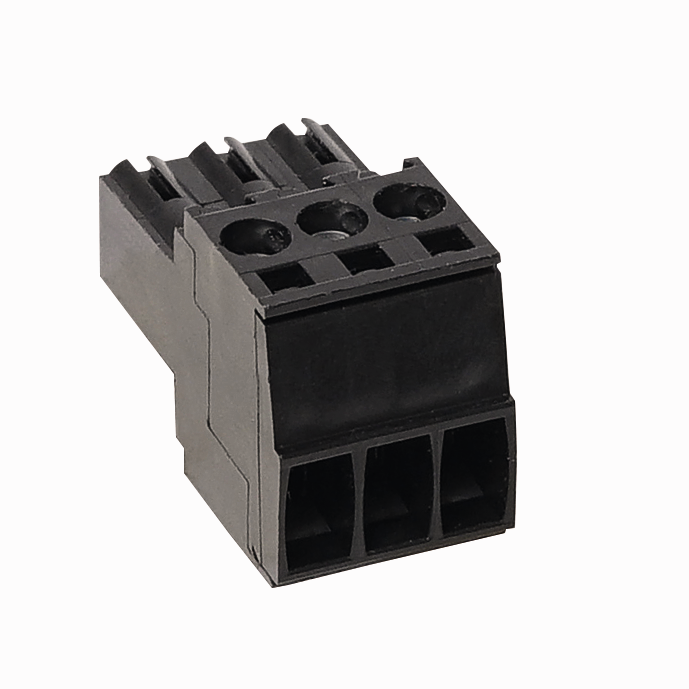

TCG20-PSC
Replacement connector for power supply. |
100002931 |
|

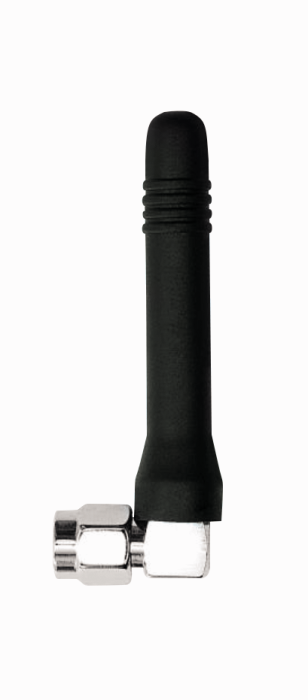

TCG20-Antenna-Short-UMTS
Antenna for mounting on the device. |
100003125 |
|

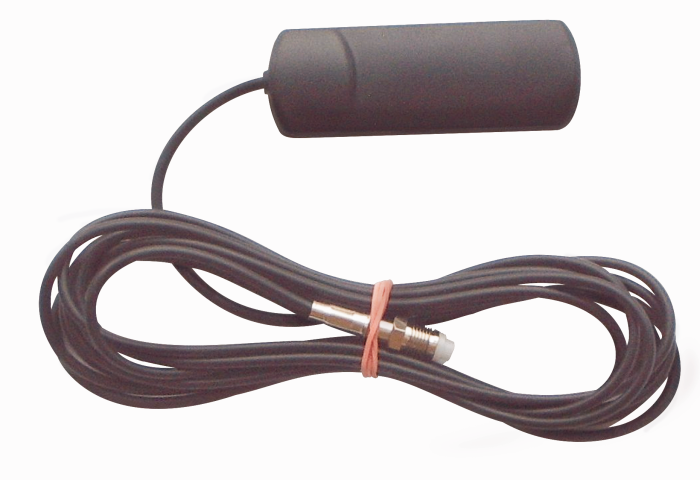

TCG20-Antenna-Glass-UMTS-1.5M
Antenna for adhesive mounting on glass or plastic. |
100003126 |
|

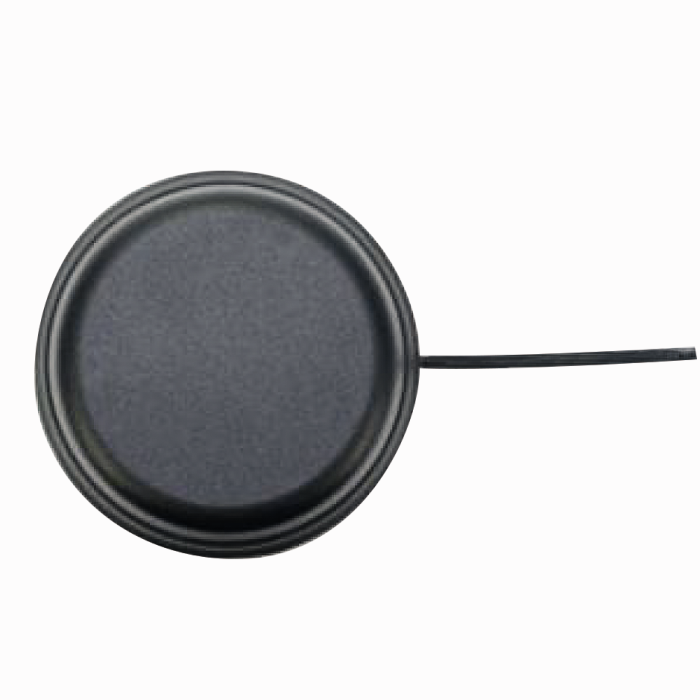

TCG20-ANTENNA-CABINET-UMTS-1.5M
Antenna for mounting on the control cabinet. |
100003127 |
|

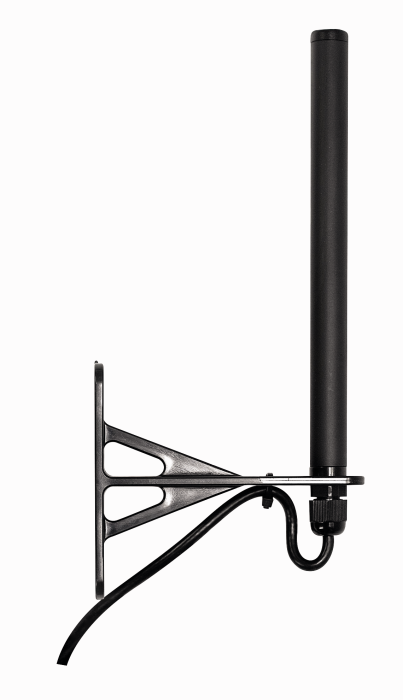

TCG20-Antenna-Wall-UMTS-3.0M
Antenna for wall mounting. |
100003128 |
|
TCS-Portal-Project-Registration-01
Setup of a project in the Turck Cloud Portal.One-off activation fee per project in the Turck Cloud Portal. |
9940005 |
|
TCS-Portal-Device-Registration-01
Registration of a device in the Turck Cloud Portal.A one-off registration fee will be charged per registered Cloud Gateway. |
9940006 |
|
TCS-Portal-Customisation-01
Customer-specific adaptation of the Turck Cloud Portal |
9940008 |
|
TCS-Portal-Device-Dataflat-Month-01
Monthly data flat rate per registered device in the Turck Cloud Portal. |
9940007 |
|
TCS-Portal-SMS-Service-01
Charge per SMS sent from the Turck Cloud Portal |
9940009 |
Connectivity accessories
|
|
TCG20-CC
Replacement connector for CAN interface. |
100002936 |
|
|
TCG20-PSC
Replacement connector for power supply. |
100002931 |
|
|
TCG20-Antenna-Short-UMTS
Antenna for mounting on the device. |
100003125 |
|
|
TCG20-Antenna-Glass-UMTS-1.5M
Antenna for adhesive mounting on glass or plastic. |
100003126 |
|
|
TCG20-ANTENNA-CABINET-UMTS-1.5M
Antenna for mounting on the control cabinet. |
100003127 |
|
|
TCG20-Antenna-Wall-UMTS-3.0M
Antenna for wall mounting. |
100003128 |
