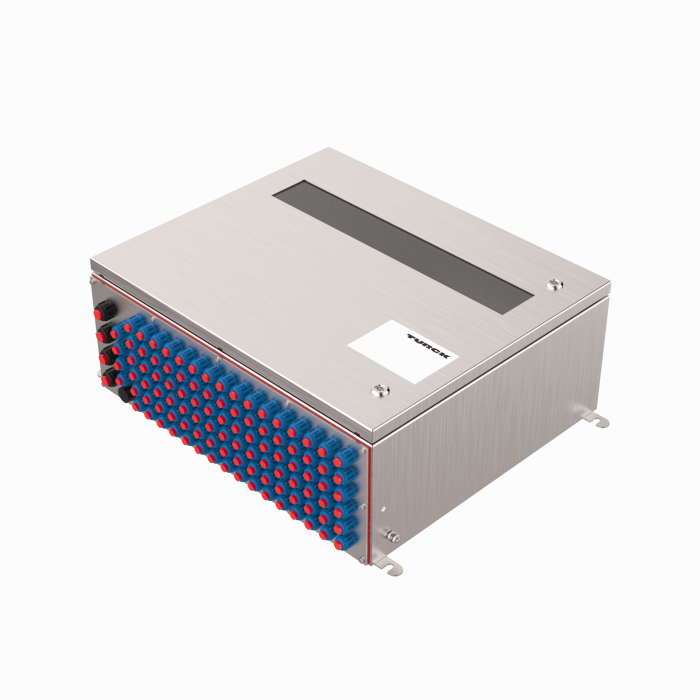

Product EG-VA655526/112-0500/3GD
excom I/O System
System Enclosure 650 x 550 x 260
Order number: 100004333- Stainless steel quality 1.4404 (AISI 316L)
- With inspection window
- Receptacle plate equipped with plastic cable glands (4 × M25 power supply, 4 × M20 Ex i bus, 96 × M20 Ex i I/O signals) and 1 × M20 breather/drainer
- Additional installation of Ex e terminals (2 × UT10, 2 × UT10-BU, 2 × UT10-PE) for connecting the supply voltage
- Stainless steel housing with built-in module rack MT16-3G
General data
| EAN | 4047101497854 |
| eCl@ss-Code (V5.1.4): | 27250391 -/- Decentralized periphery (parts) [AKP191002] |
| Customs tariff number | 85371098990 |
| Country of origin | DE |
| Weight | 32000 g |
Technical Data
| Product series | excom |
| Device type | Housing |
| Construction size | 550 x 650 x 260 mm |
| Module rack | MT16-3G |
| Input voltage | 24 VDC |
| Coupler/converter/switch | None |
| Protection class | IP66 |
| Installation area | zone 2 |
Mounting accessories
|
VSTS22
Socket spanner for cable glands, SW22 |
6884043 |
|
|

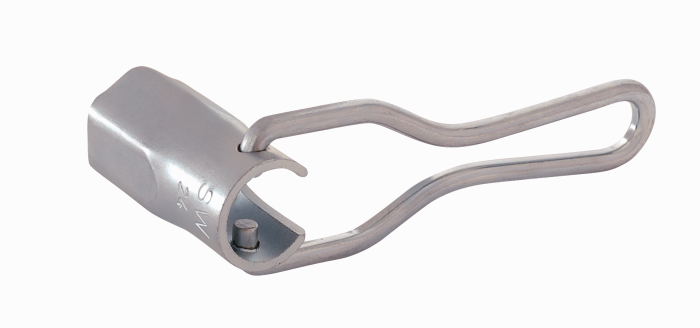

VSTS24
Socket spanner for cable glands, SW24 |
6900462 |
|

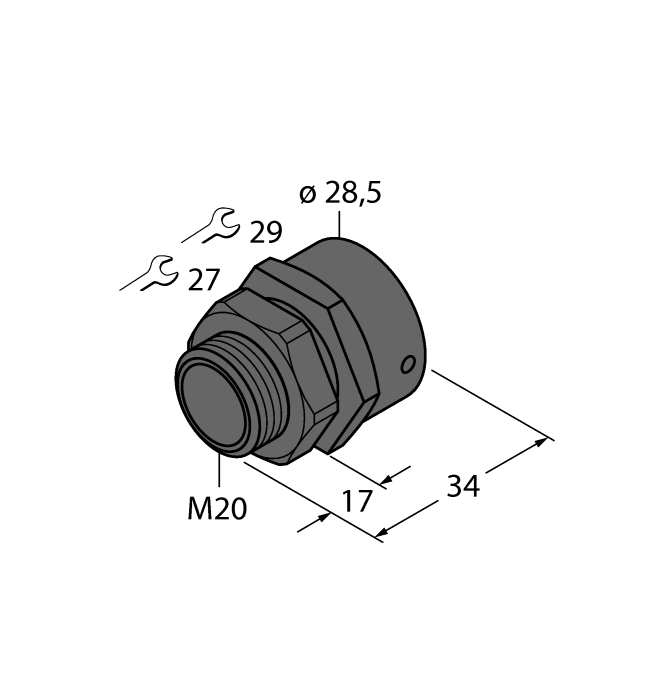

ELST-M20EX
Pressure compensation element (plastic), prevents condensation inside the housing |
6884033 |
|

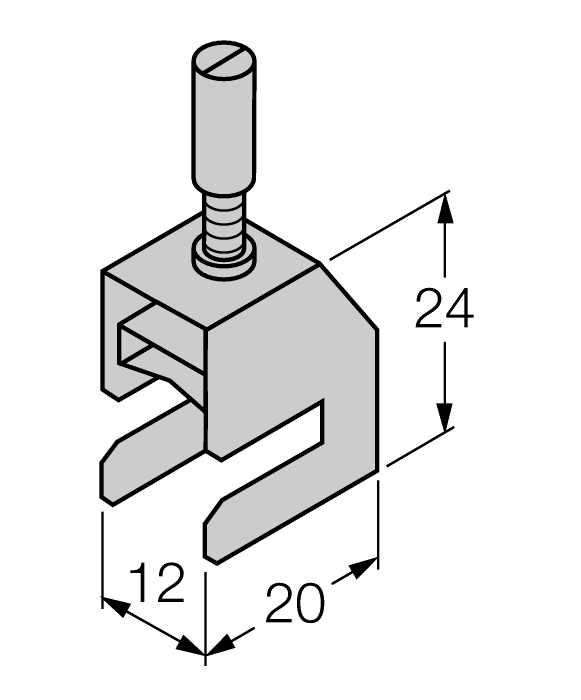

SK8
Shield terminal for shielding bus bars, cable diameter 3…8 mm, PU 10 pieces |
6900360 |
Connectivity accessories
|
D9T-RS485IS /6ES7972-0DA60-0XA0
PROFIBUS bus connector for RS485-IS, Fast Connect, only for use with IS devices! |
6890944 |
