Product TX700S-P3WV01

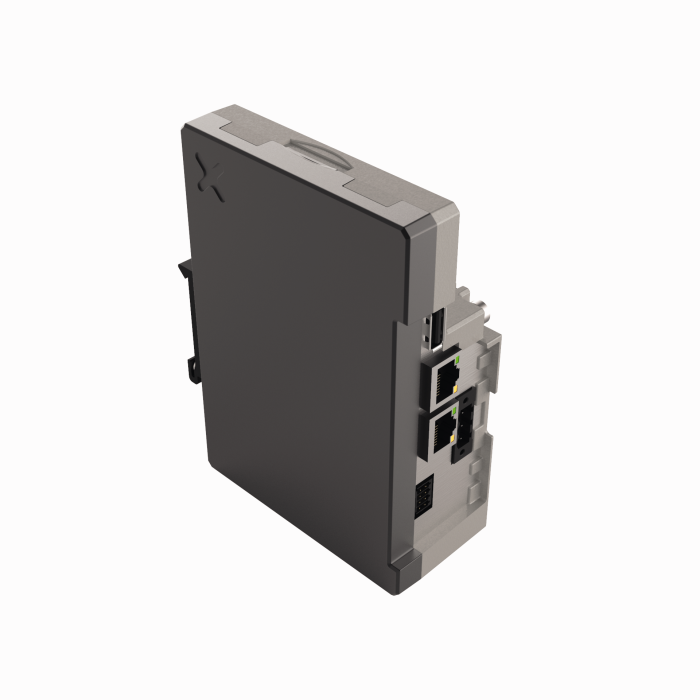

Zoom
Zoom

TX700 HMI/PLC Series

Single-Core IOT Gateway — CODESYS V3 PLC with WEB VISU

Medium Housing, 2 × RJ45 Ethernet

Order number: 100009353

2 separated RJ45 Ethernet ports with 10/100 Mbit
1 serial interface (RS232, RS485, RS422)
1 USB host port
1 SD card slot

Hide All Open All

Specifications
Download
Accessories

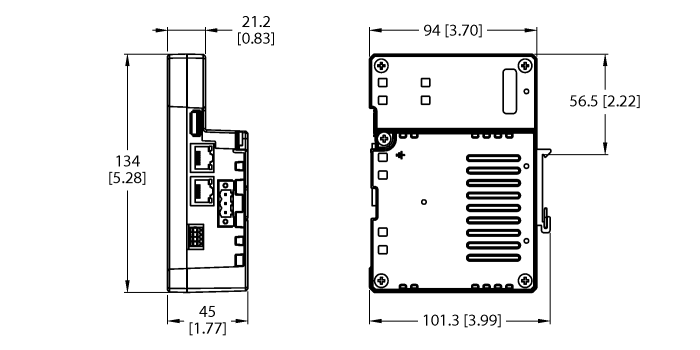

CAD

General data

EAN	4047101513066
eCl@ss-Code (V5.1.4):	27242302 -/- Graphic panel (display and console)
Customs tariff number	85371091990
Country of origin	IT
Weight	940 g

Technical Data

Product series	TX700
Device type	Cloud Gateway, Control
Protection class	IP20
Interface	RS232, RS485, 2 × RJ45
Radio interface	Optionally expandable
Fieldbus master	PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT
Fieldbus slave	Modbus TCP, Modbus RTU, PROFINET
Programming	CODESYS V3

Data Sheets

German	360 KB
English	359 KB
French	360 KB
Spanish	1626 KB
Czech	361 KB
Dutch	359 KB
Romanian	359 KB
Russian	1654 KB
Polish	362 KB
Chinese	385 KB
Turkish	362 KB

Approval/Declaration

IECEx	534 KB
ATEX	256 KB

CAD File

2D (DXF)	605 KB
3D-1 (STP)	2425 KB

CAD STP File

3D (STP)	2425 KB

Configuration File

CODESYS Package TX HMI/PLCs (for CODESYS v3.5.19.20 or Higher)	7534 KB
CODESYS Package TX HMI/PLCs (for CODESYS v3.5.18.30 or Higher)	8197 KB
CODESYS Package TX HMI/PLCs (for CODESYS v3.5.16.30 or Higher)	6826 KB
GSDML Files	11 KB
EDS Files	6 KB

Configuration Software

CODESYS Software 3.5.18.3	1465476 KB
CODESYS Software 3.5.16.3	1344878 KB

Manual

TX700 IIoT — Instructions for use	7423 KB
PROFINET Controller/Device in CODESYS v3	2106 KB

Manufacturer's Declaration

EU conformity declaration	141 KB

Product Overview

TX HMI Operator Panels, PLC and IIoT Edge Controller	4929 KB

Quick Start Guide

Quick Start Guide	1064 KB

Mounting accessories

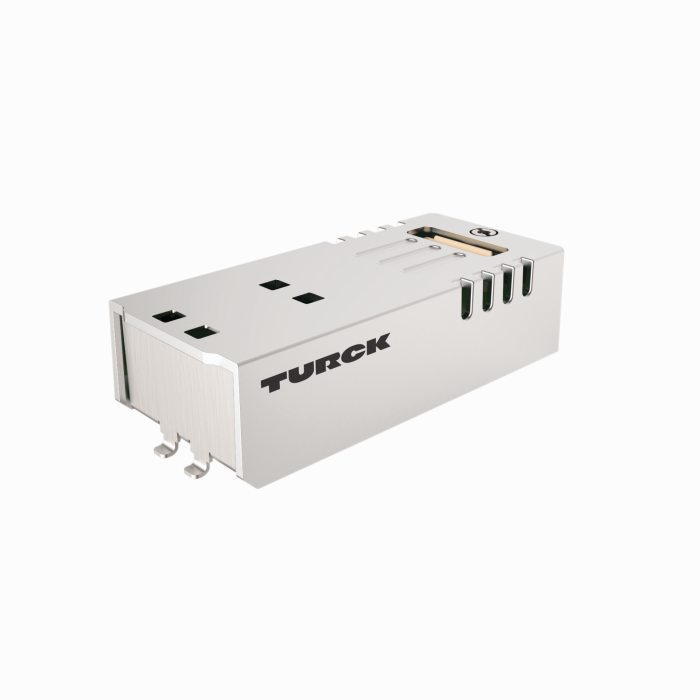

	TX-LTE-WLAN Plug-in LTE and Wi-Fi modem with LTE/UMTS/GSM, Wi-Fi and GNSS	100025179

Functional accessories

	TX-IO-XX03 Plug-in I/O module — 20 DI, 12 DO, 4 AI (U/I/RTD/TC), 4 AO (U/I)	6828201
	TX-IO-DX06 Plug-in I/O module — 8 DI, 6 DO, 1 relay output (NO)	6828203
	TX-EXTEND Plug-in extension module for mechanical adjustment for using the TX-IO-XX03 module	100004786
	TX-DP-S Plug-in PROFIBUS DP slave interface, 9-pin SUB-D female connector	100010167
	TX-CAN Plug-in CANopen interface, 9-pin SUB-D male connector	6828210
	TX-RS485 Plug-in interface for RS485/RS422, 9-pin SUB-D female connector	100002598
	TX-RS232 Plug-in interface for RS232, 9-pin SUB-D female connector	100002599
	TX-PSC Power Supply Male Connector for TX HMI Devices	100002938
