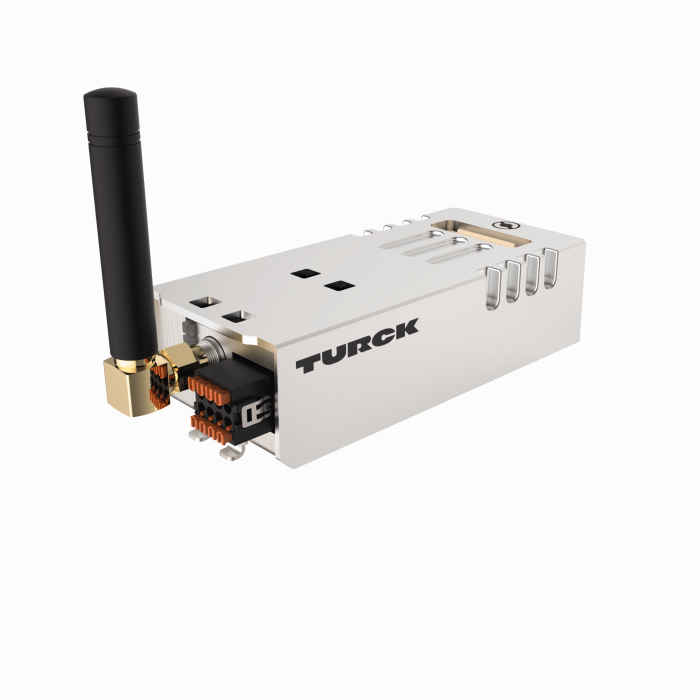

Product TX-UMTS
TX HMI/PLC Series
Plug-In Module
UMTS Modem (2G and 3G)
Order number: 100009535- Plug-in extension module for use with HMI/PLC of the TX700 series
- Supports GSM/GPRS/EDGE and UMTS/HSDPA/HSUPA mobile networks
- 2 digital inputs/2 digital outputs
- 4 LED indicators (module status and network status)
- Micro SIM slot
- With plug-in extension slot
General data
| EAN | 4047101513233 |
| eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
| Customs tariff number | 85389091890 |
| Country of origin | IT |
| Weight | 199 g |
Technical Data
| Product series | TX700, TX800 |
| Device type | Extension module |
| Mounting | On HMIs from the TX700 product series |
| Protection class | IP20 |
| Ambient temperature | -20…+60 °C |
