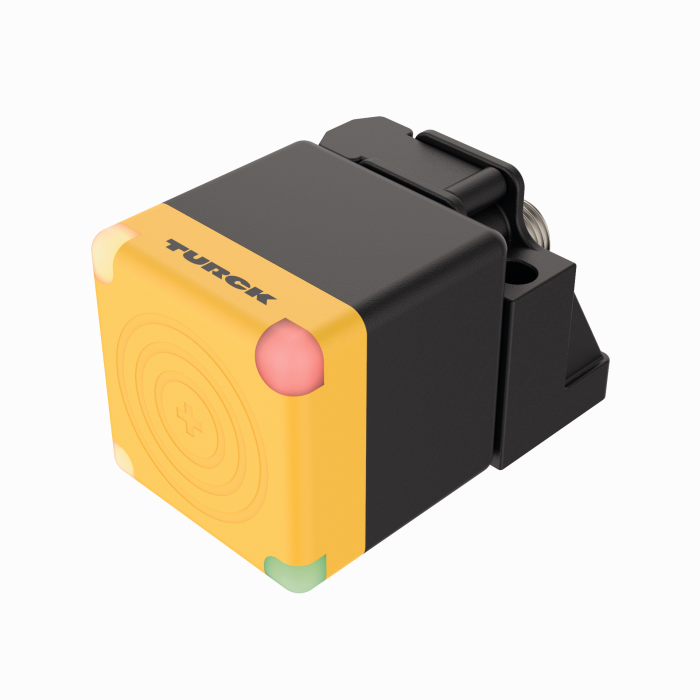

Product TN-Q40-IOL2-H1141
HF Read/Write Head
IO-Link
Order number: 100012163- Rectangular, height 40 mm
- The active face (yellow) can be positioned in five different orientations without the need for tools (quick toggle catch)
- Plastic, PBT-GF30-V0
- Process value in 32-byte IO-Link telegram
- Operation in SIO mode possible
- RSSI value output
- Alarm outputs, parameterizable (e.g. for RSSI threshold)
- Password function for accessing the tag (separate hardware must be used to enable the password function)
- Operating hours counter
- Male connector, M12 × 1, 4-pin
General data
| EAN | 4047101514209 |
| eCl@ss-Code (V5.1.4): | 27280401 -/- Identification RFID |
| Customs tariff number | 84719000000 |
| Country of origin | LK |
| Weight | 114 g |
Technical Data
| Technology | HF RFID |
| Radio communication and protocol standards | ISO 15693, NFC Typ 5 |
| Design | Rectangular |

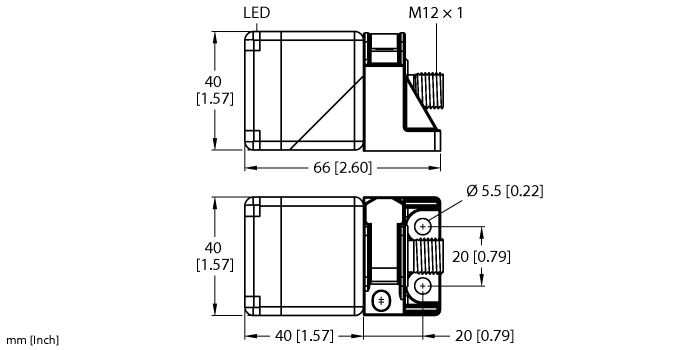

| Construction size | 66 x 40 x 40 mm, Q40 |
| Mounting conditions | Non-flush |
| Network protocol | IO-Link |
| Housing material | Plastic, PBT |
| Ambient temperature | -25…+80 °C |
| Protection class | IP68/IP69K |
Data Sheets
| German | 1621 KB |
| English | 1621 KB |
| French | 1621 KB |
| Czech | 1621 KB |
| Dutch | 1621 KB |
| Romanian | 1621 KB |
| Russian | 1628 KB |
| Polish | 1622 KB |
| Chinese | 1700 KB |
| Turkish | 1622 KB |
CAD File
Configuration File
Function Block/Library
| CODESYS Function Block for RFID IO-Link Read/Write Devices IOL2 | 26224 KB |
| TIA Function Block for RFID IO-Link Read/Write Devices IOL2 | 671 KB |
Instructions for Use
Manual
Product Flyer
Quick Start Guide
Connectivity accessories
|
RKC4.4T-2-RSC4.4T/TXL
Extension cable, M12 female connector, straight, 4-pin to M12 male connector, straight, 4-pin; cable length: 2 m, jacket material: PUR, black; cULus approval |
6625608 |
Functional accessories
|
TBEN-S2-4IOL
Compact multiprotocol I/O module, 4 IO-Link Master 1.1 Class A, 4 universal PNP digital channels 0.5 A |
6814024 |
