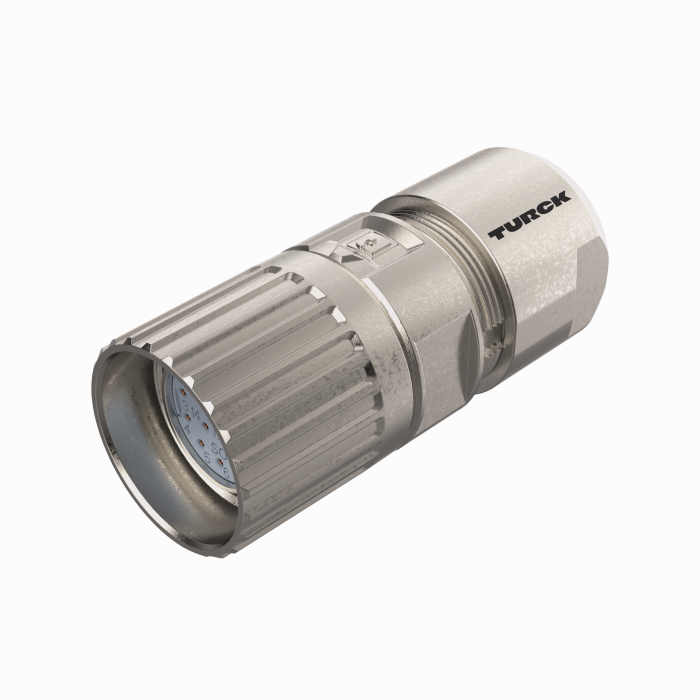

Product FW-CRKSM1717-P-C-0315
Field-Wireable Connector

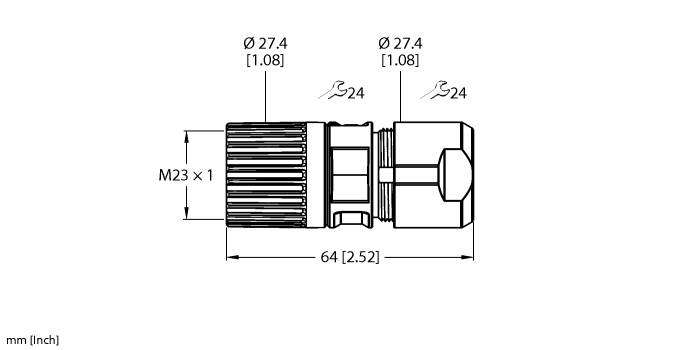

Female M23 × 1, Straight
Order number: 100020364- Metal housing
- Shieldable
- Protection class: IP66, IP68
- Crimp terminal (17 × crimp contacts for terminal cross section 0.5…1.0 mm² included in delivery)
- 17-pin
- Cable feedthrough: 3.0…15.0 mm
- Terminal capacity: 0.08…1.0 mm²
General data
| EAN | 4047101526783 |
| eCl@ss-Code (V5.1.4): | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | DE |
| Weight | 112 g |
Technical Data
| Application | Signal |
| Connector A | Female, M23 × 1, Straight |
| Number of pins | 17 |
| Connection mode | Crimp connection |
| Housing material | Die-cast Zinc, GD-Zn |
| Coupling nut/screw material | Zinc, GD-Zn |
| External diameter of the cable | 3…15 mm |
| Core cross-section/Clamping ability | 0.08…1 mm² |
| Voltage | 125 V |
| Current | 8 A |
