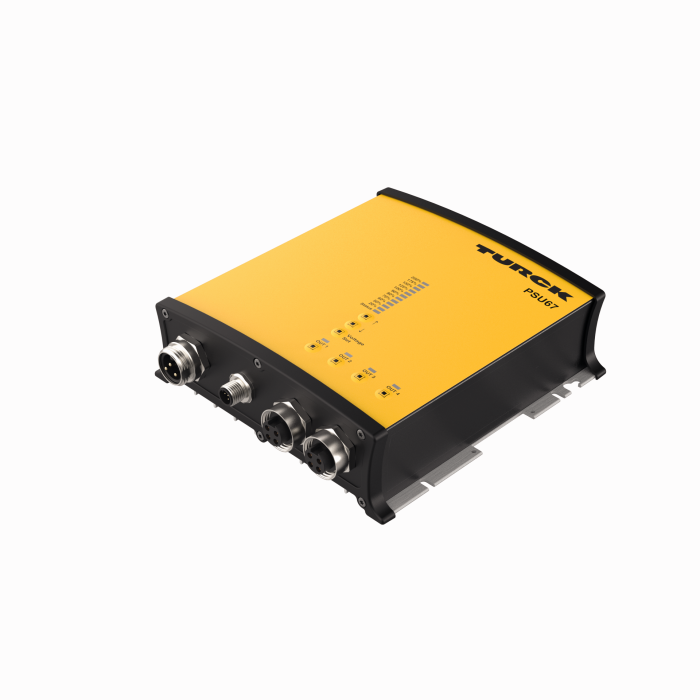

Product PSU67-1P-1M-2M4-24150-IOL-F
Smart Power Supply Module in IP67
24…28 VDC Output Voltage
1-Phase, 15-A Output Current, IO-Link Interface
Order number: 100025928- Broad temperature range
- Status LED
- High efficiency, > 95 %
- 1-phase AC input, 7/8″, 3-pin
- Current-limited outputs, 2 × 7/8″, 4-pin
- Protected by 4 separate eFuses
- IO-Link interface for checking and parameterization
- LED interface and control buttons for maximum flexibility
General data
| EAN | 4047101536270 |
| eCl@ss-Code (V5.1.4): | 27049002 -/- DC supply |
| Customs tariff number | 85044083900 |
| Country of origin | CZ |
| Weight | 1596 g |
Technical Data
| Power supply | 230 VUC |
| Nominal output voltage | 24 V |
| Output voltage | 24…28 VDC |
| Nominal current | 15 A |
| Status interface | IO-Link (V 1.1) |
| Internal fuse | 4 separate eFuses |
| Parallel mode | no |
| Power Good Output | no |

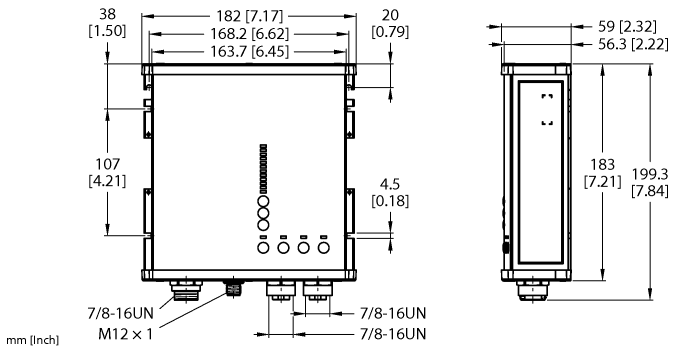

| Dimensions | 183 x 180.6 x 58.7 mm |
| Protection class | IP67 |
