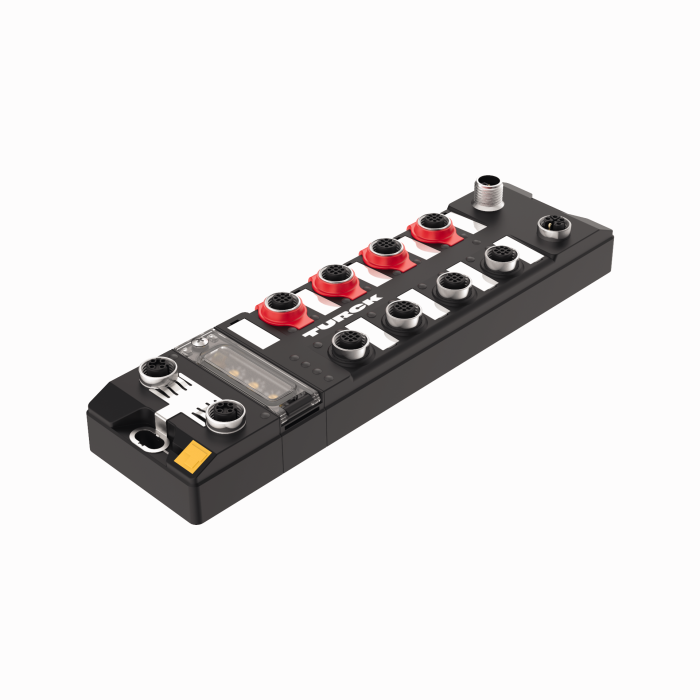

Product  TBIP-LL-FDIO1-2IOL

Compact and Secure Ethernet I/O Module

Safe Digital Inputs and Outputs, Standard Universal Digital Channels, IO-Link Master Ports

M12 L-Coded Voltage Connector

Order number: 100027260
    • Ethernet/IP device
    • Integrated Ethernet switch
    • 10 Mbps/100 Mbps supported
    • 2 × M12, 4-pin, D-coded, Ethernet fieldbus connection
    • Glass fiber reinforced housing
    • Shock and vibration tested
    • Fully potted module electronics
    • Protection classes IP65, IP67, IP69K
    • M12, 5-pin, L-coded male connector for power supply
    • ATEX zone 2/22
    • CCC-Ex
    • Two secure digital SIL3-inputs
    • Two secure digital SIL3 channels as FDI or FDO (PP, PM)
    • Four secure digital SIL3 FDI channels
    • 2 IO-Link Master V1.1 slots
#
Hide All Open All

General data

EAN 4047101538762
eCl@ss-Code (V5.1.4): 27250302 -/- Digital I/O module (periphery)
Customs tariff number 85176200000
Country of origin DE
Weight 595 g

Technical Data

Network protocol CIP safety via EtherNet/IP
Signal type Fail-safe inputs, Fail-safe inputs and outputs, Digital input/output, IO-Link
Connection technology signal M12
Device type I/O Module, Compact station
Fieldbus transmission rate 10/100 Mbps
Fieldbus connection technology 2 × M12, 4-pin, D-coded
Ambient temperature -40…+70 °C
Protection class IP65/IP67/IP69K
Approvals ATEX Zone 2/22, cULus, IECEx, CCC

Mounting accessories

TB-SG-L

Protective housing for TBEN-L and TBIL-M block I/O modules for use in ATEX Zone 2/22

 100014865
