Product EG-VA465526/111-0730/N
excom I/O System

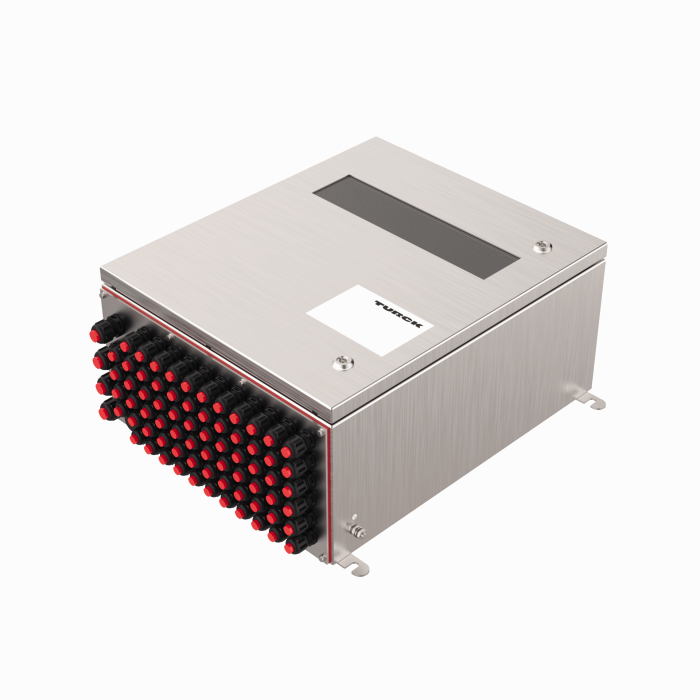

System Enclosure 460 x 550 x 260
Order number: 100038684- Stainless steel quality 1.4404 (AISI 316L)
- With inspection window
- Receptacle plate equipped with plastic cable glands (4 × M25 power supply, 4 × M20 bus, 66 × M16 I/O signals) and 1 × M20 breather/drainer
- Additional installation of 2 × AC/DC QUINT-PS power supply modules and Ex e terminals (2 × UT10, 2 × UT10-BU, 2 × UT10-PE) for connecting the supply voltage
- Stainless steel housing with built-in module rack MT08-N
General data
| EAN | 4047101593815 |
| eCl@ss-Code (V5.1.4): | 27250391 -/- Decentralized periphery (parts) [AKP191002] |
| Customs tariff number | 85371098990 |
| Country of origin | DE |
| Weight | 32000 g |
Technical Data
| Product series | excom |
| Device type | Housing |
| Construction size | 550 x 460 x 260 mm |
| Module rack | MT08-N |
| Input voltage | U<subscript>AC </subscript>= 115/230 VAC |
| Coupler/converter/switch | None |
| Protection class | IP66 |
| Installation area | non-Ex |
Mounting accessories
|
VSTS22
Socket spanner for cable glands, SW22 |
6884043 |
|
|
VSTS24
Socket spanner for cable glands, SW24 |
6900462 |
|
ELST-M20EX
Pressure compensation element (plastic), prevents condensation inside the housing |
6884033 |
|
SK8
Shield terminal for shielding bus bars, cable diameter 3…8 mm, PU 10 pieces |
6900360 |
