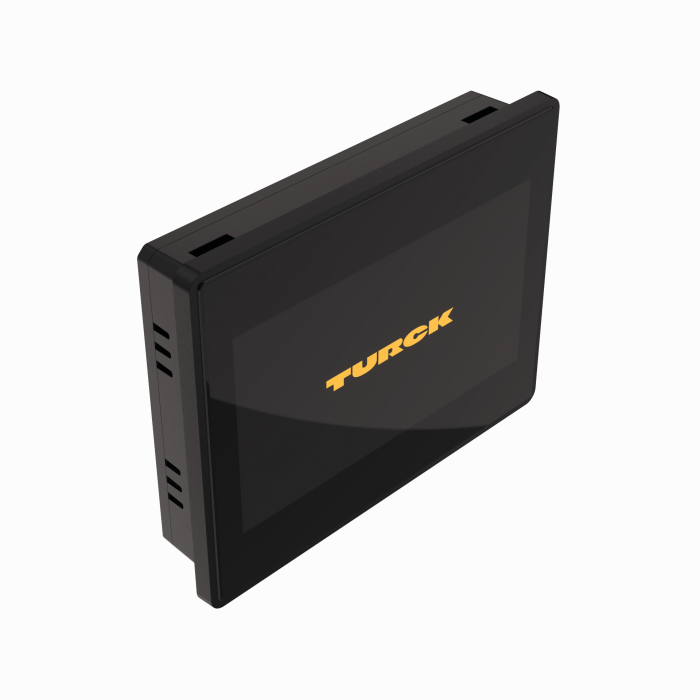

Product TX407-P3CV01
TX400 HMI/PLC Product Series
7″ Display — CODESYS V3 PLC with TARGET and WEB VISU
High-Quality Plastic Housing and Front Film with Capacitive Touch
Order number: 100051168- 2 separate RJ45 Ethernet ports
- 1 serial interface (RS232/RS422/RS485)
- 1 CAN interface
- 1 USB host port
General data
| EAN | 4047101683639 |
| eCl@ss-Code (V5.1.4): | 27242302 -/- Graphic panel (display and console) |
| Customs tariff number | 85371091990 |
| Country of origin | IT |
| Weight | 977 g |
Technical Data
| Product series | TX400 |
| Device type | Cloud Gateway, Industrial Control |
| Protection class | IP66 front, IP20 rear |
| Interface | RS232, RS485, 3 × RJ45 |
| Fieldbus master | PROFINET, EtherNet/IP, Modbus TCP, Modbus RTU, CANopen, SAE J1939, EtherCAT |
| Fieldbus slave | Modbus TCP, Modbus RTU, PROFINET |
| Programming | CODESYS V3 |
Data Sheets
| German | 288 KB |
| English | 287 KB |
| French | 289 KB |
| Czech | 289 KB |
| Dutch | 287 KB |
| Romanian | 287 KB |
| Polish | 290 KB |
| Chinese | 311 KB |
| Turkish | 289 KB |
Configuration File
| CODESYS Package TX HMI/PLCs (for CODESYS v3.5.16.30 or Higher) | 6826 KB |
| GSDML Files | 11 KB |
| EDS Files | 6 KB |
Configuration Software
Manual
Manufacturer's Declaration
Product Overview
Quick Start Guide
Mounting accessories
|
TX700-MOUNT-10
TX700 mounting bracket and power connectors for 10” devices |
100003189 |
Functional accessories
|
TX-PSC
Power Supply Male Connector for TX HMI Devices |
100002938 |
