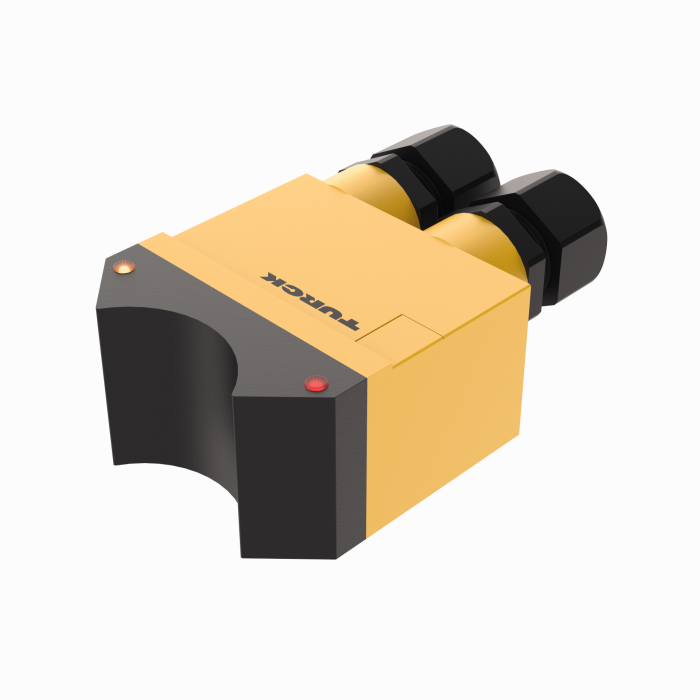

Product NI4-DSU35TC-2AD4X2
Inductive Sensor
For Rotary Actuators
Order number: 4430130- Rectangular, housing DSU35
- Plastic, PP-GF30-VO
- Two outputs for monitoring the position of rotary actuators
- Mounting on all standard actuators
- DC 2-wire , 10…65 VDC
- 2 x NO contact
- Terminal chamber
General data
| EAN | 4047101096644 |
| eCl@ss-Code (V5.1.4): | 27270101 -/- Inductive proximity switch |
| Customs tariff number | 85365080000 |
| Country of origin | DE |
| Weight | 137 g |
Technical Data
| Design | Dual sensor for rotary actuators |

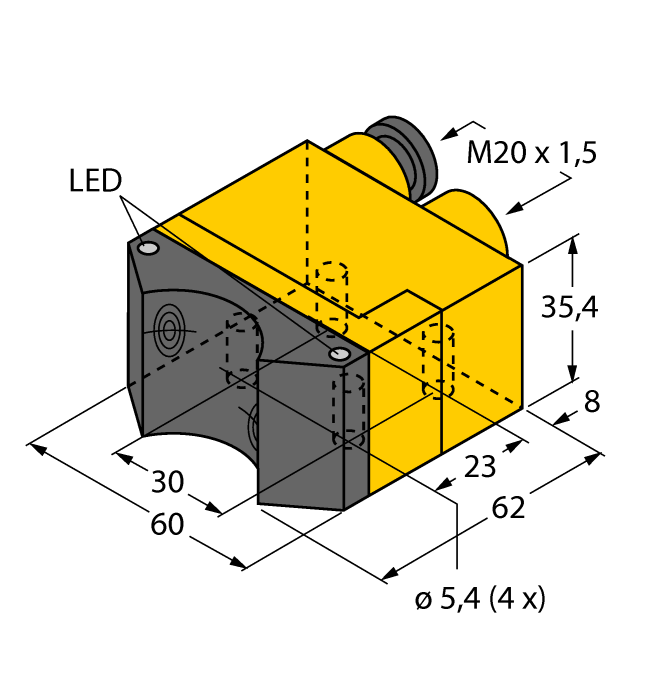

| Construction size | 62 x 60 x 35.4 mm, DSU35 |
| Rated switching distance | 4 mm |
| Mounting conditions | Non-flush |
| Operating voltage | 10…65 VDC |
| Output function | NO contact, 2-wire |
| Switching frequency | 0.050 kHz |
| Electrical connection | Terminal chamber |
| Housing material | Plastic, PP-GF30, Yellow |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
