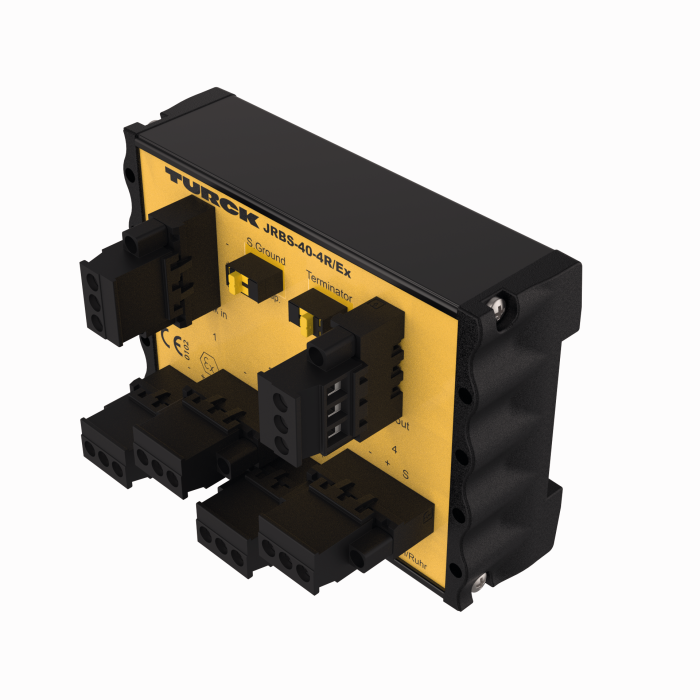

Product JRBS-40-4R/EX
IP20 Junction Box, 4-Channel
FOUNDATION Fieldbus and PROFIBUS-PA
Order number: 6611456- Junction box for DIN rail mounting
- Switch-in terminating resistor
- Cable shielding: Capacitive or direct connection with housing potential selectable via switch
- aluminium housing
- Entity and FISCO compliant according to IEC 60079-11
General data
| EAN | 4047101203158 |
| eCl@ss-Code (V5.1.4): | 27250201 -/- Network components (fieldbus) |
| Customs tariff number | 85369095000 |
| Country of origin | DE |
| Weight | 212 g |
Technical Data
| Network protocol | FOUNDATION fieldbus, PROFIBUS-PA |
| Connection technology signal | Screw terminal |
| Device type | Passive fieldbus junction box |
| Ambient temperature | -25…+70 °C |
| Protection class | IP20 |
| Approvals | ATEX, Ex-Approval |
