Product Cable452B-500M
PROFIBUS Cable
Connection Cable
Order number: 6611473- PROFIBUS cable: AWG 22/1
- Jacket material: PVC, color: blue
- Jacket diameter: 8.1 mm
- Oil resistant
- UV resistant
- End open
- Open end
- Cable length: 500 m
General data
| EAN | 4047101519815 |
| eCl@ss-Code (V5.1.4): | 27060307 -/- Bus cable |
| Customs tariff number | 85444995900 |
| Country of origin | DE |
| Weight | 37000 g |
Technical Data
| Application | Data |
| Number of Conductors | 2 |
| Core cross-section | 0.34 mm² |
| Network protocol | PROFIBUS-DP |

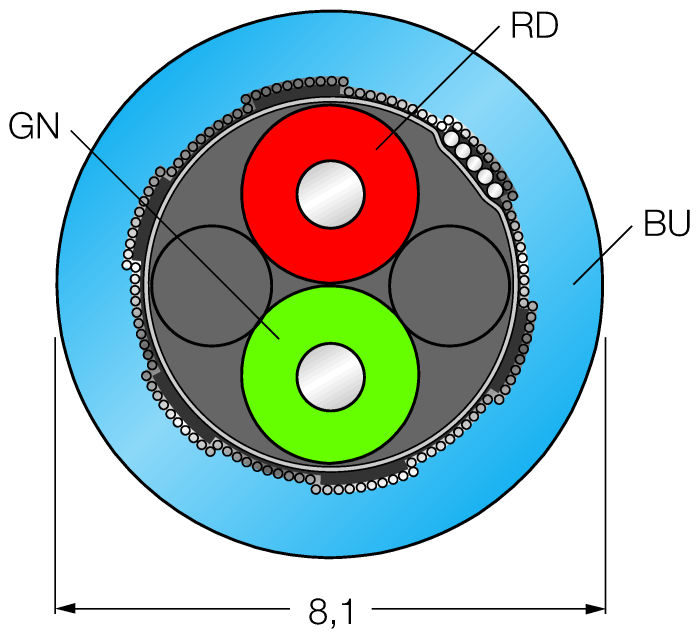

| Cable diameter | Ø 8.1 mm |
| Cable length | 500.0 m |
| Cable jacket | PVC, Blue |
| Shielding | Aluminum foil, tinned copper wire |
