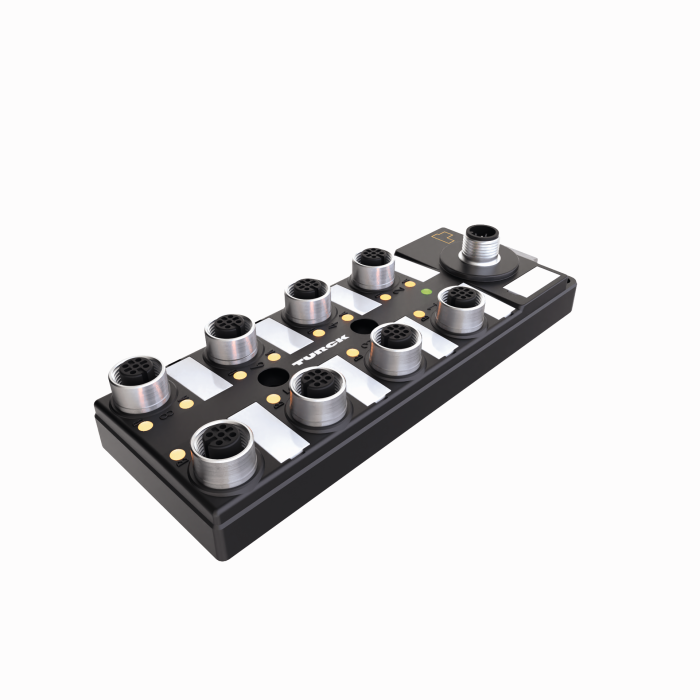

Product TBIL-M1-16DXP
I/O Hub for Connecting Digital Signals to IO-Link Master
16 Universal Digital Channels, PNP
Order number: 6814102- IO-Link V1.1 Class A
- Glass fiber reinforced housing
- Shock and vibration tested
- Fully potted module electronics
- Protection classes IP65, IP67, IP69K
- ATEX Zone 2/22
- CCC-Ex
- 2 universal digital channels per slot
- I&M data sets support installation and maintenance
- IO-Link diagnostics for short circuit and supply voltage
General data
| EAN | 4047101341829 |
| eCl@ss-Code (V5.1.4): | 27250307 -/- Technology module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | MX |
| Weight | 284 g |
Technical Data
| Network protocol | IO-Link |
| Signal type | Digital output, Digital input, Digital input/output |
| Connection technology signal | M12 |
| Device type | I/O hub, I/O Module, Compact station |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67/IP69K |
| Approvals | ATEX Zone 2/22, cULus, IECEx, CCC |
Data Sheets
| German | 460 KB |
| English | 458 KB |
| French | 459 KB |
| Spanish | 460 KB |
| Czech | 459 KB |
| Dutch | 459 KB |
| Romanian | 459 KB |
| Russian | 321 KB |
| Polish | 461 KB |
| Chinese | 532 KB |
| Turkish | 460 KB |
Approval
CAD File
Configuration File
General Catalog
Instructions for Use
Manual
Manufacturer's Declaration
Product Flyer
Product Overview
Mounting accessories
|

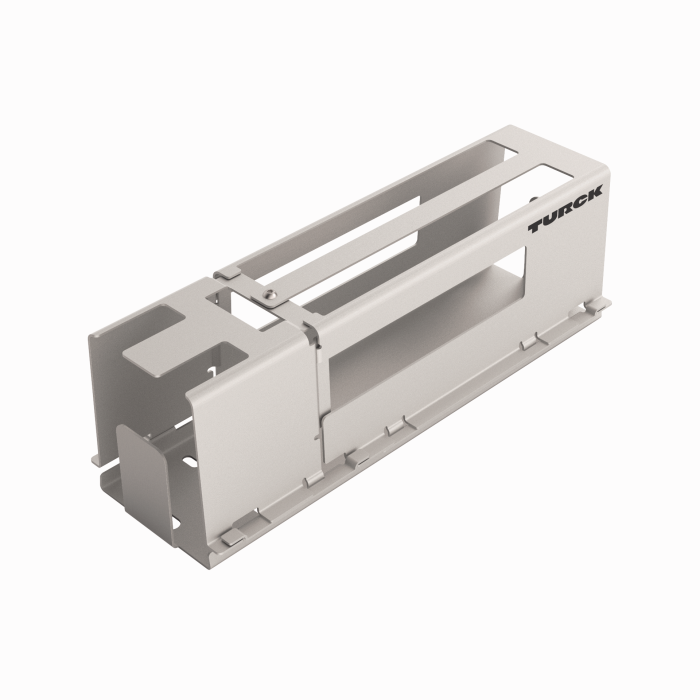

TB-SG-L
Protective housing for TBEN-L and TBIL-M block I/O modules for use in ATEX Zone 2/22 |
100014865 |
Functional accessories
|
TBEN-S2-4IOL
Compact multiprotocol I/O module, 4 IO-Link Master 1.1 Class A, 4 universal PNP digital channels 0.5 A |
6814024 |
