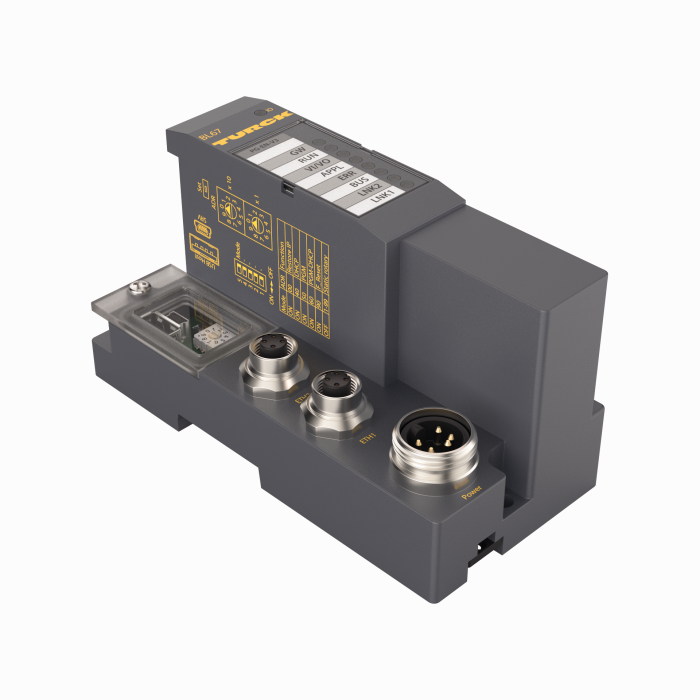

Product BL67-PG-EN-V3
CODESYS 3 Programmable Gateway for the BL67 I/O System
Multiprotocol Ethernet Gateway for PROFINET, EtherNet/IP and Modbus TCP
Order number: 6827394- CODESYS V3 PLC Runtime
- CODESYS OPC UA server/client
- IIoT gateway for Turck Cloud
- PROFINET device
- EtherNet/IP device
- Modbus TCP master/slave
- Protection class IP67
- LEDs for display of PLC status, supply voltage, group and bus faults
- 2 × M12 Ethernet, 4-pin, D-coded
- Switched or dual MAC mode
- 10 Mbps/100 Mbps
- 7/8″ male connector for power supply, 5-pin
General data
| EAN | 4047101350333 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85371091990 |
| Country of origin | DE |
| Weight | 365 g |
Technical Data
| Product series | BL67 |
| Device type | Programmable gateway, Cloud Gateway |
| Protection class | IP67 |
| Interface | 2 × RJ45 |
| Fieldbus master | Modbus TCP |
| Fieldbus slave | PROFINET, Modbus TCP, EtherNet/IP |
| Programming | CODESYS V3 |
| Ambient temperature | -25…+70 °C |
General data
| EAN | 4047101350333 |
| eCl@ss-Code (V5.1.4): | 27250312 -/- Communication interface, active |
| Customs tariff number | 85371091990 |
| Country of origin | DE |
| Weight | 365 g |
Technical Data
| Network protocol | PROFINET, Modbus TCP, EtherNet/IP |
| Device type | Programmable gateway, Cloud Gateway |
| Fieldbus transmission rate | 10/100 Mbps, Full/Half Duplex, Auto Negotiation, Auto Crossing |
| Fieldbus connection technology | 2 × M12, 4-pin, D-coded |
| Ambient temperature | -25…+70 °C |
| Protection class | IP67 |
Data Sheets
| German | 645 KB |
| English | 643 KB |
| French | 402 KB |
| Spanish | 402 KB |
| Czech | 403 KB |
| Dutch | 400 KB |
| Romanian | 401 KB |
| Russian | 426 KB |
| Polish | 404 KB |
| Chinese | 492 KB |
| Turkish | 404 KB |
Configuration File
Firmware
| BL67-PG-EN-V3 Firmware v1.4.2.0 (for CODESYS Version v3.5.14.20 or Higher) | 21404 KB |
| BL67-PG-EN-V3 Firmware v1.5.4.0 (for CODESYS Version v3.5.16.30 or Higher) | 23374 KB |
General Catalog
Manual
| BL67I/O modules | 10134 KB |
| BL20/BL67 programmable Ethernet gateways for CODESYS 3 | 3006 KB |
| PROFINET Controller/Device in CODESYS v3 | 2106 KB |
Manufacturer's Declaration
Product Flyer
Product Overview
Functional accessories
|

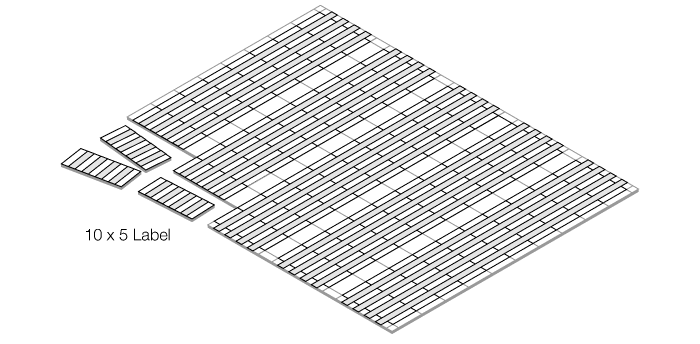

BL67-LABEL-DIN-A4-50STCK.
Labels for electronic modules and gateways, DIN A5 sheets, perforated, laser printing, 50 pcs. |
6827196 |
