Product BSO1L150-BQ18-VP6X2
Photoelectric Sensor
Diffuse Mode Laser Sensor with Adjustable Background Suppression
Order number: 7700249- Cable, PVC, 2 m
- Protection class IP67
- LED, all-round visible
- Cut-off point adjusted via potentiometer
General data
| eCl@ss-Code (V5.1.4): | 27270904 -/- Diffuse mode sensor with background suppression |
| Customs tariff number | 85437090990 |
| Country of origin | US |
| Weight | 1 g |
Technical Data
| Function | Diffuse mode sensor with adjustable background suppression |

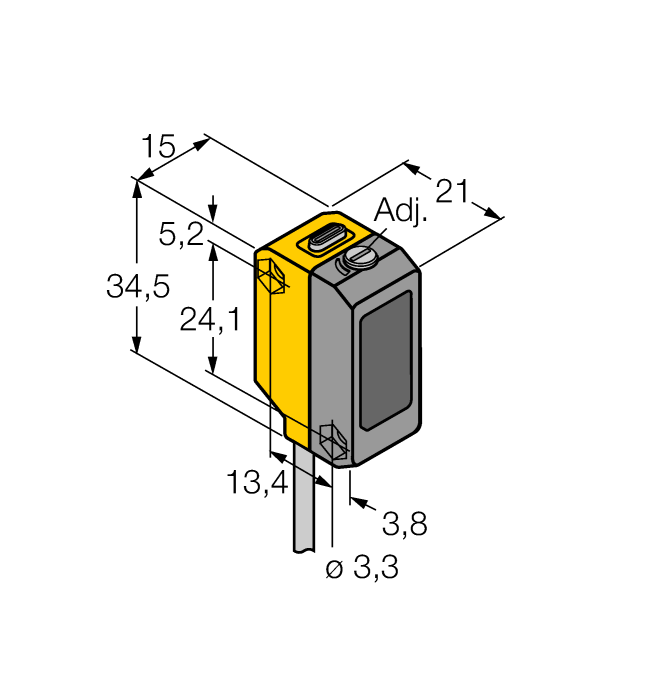

| Design | Rectangular |
| Range | 1…150 mm |
| Light type | Red |
| Laser class | 1 |
| Operating voltage | 10…30 VDC |
| Output function | NO/NC, PNP |
| Current output | 100 mA |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, ABS |
| Ambient temperature | -10…+50 °C |
| Protection class | IP67 |
