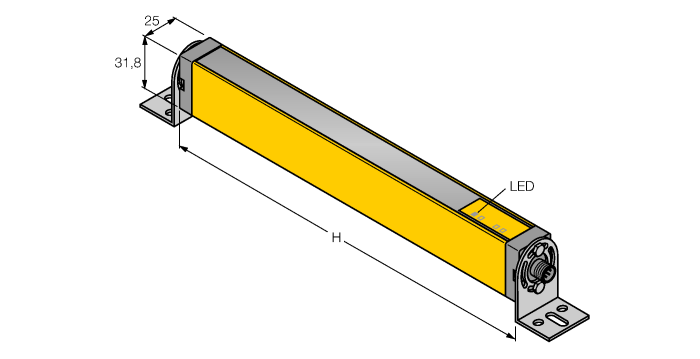

Product RO15M-Q32L600-2RLP5X2-H1181
Safety light screen
Receiver
Order number: 7700330- M12 x 1 male, 8-pin
- Protection class IP65
- Scan field 600 mm
- Resolution 30 mm
- Internal testing in 500 ms cycle
- Range 15 m
- Operating voltage 24 VDC +‐15%
- Switching output with LATCH
- Muting is not supported
- Type 2 acc. to IEC 61496-1,-2; category 2 PLc acc. to EN ISO 13849-1:2008; SIL1 acc. to IEC 61508
General data
| eCl@ss-Code (V5.1.4): | 27270910 -/- Light grid |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 1 g |
Technical Data
| Function | Light screen |
| Design | Rectangular |
| Scan field | 600 mm |
| Range | 200…15000 mm |
| Optical resolution | 30 mm |
| Start/Restart interlock | yes |
| Operating voltage | 20…28 VDC |
| Output function | 2 x NC contact, 2 × PNP |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, AL, Yellow |
| Ambient temperature | 0…+55 °C |
| Protection class | IP65 |
Connectivity accessories
|
WKC8T-2/TEL
Connection cable, M12 female connector, angled, 8-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625133 |
|
RKC8T-2/TEL
Connection cable, M12 female connector, straight, 8-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625130 |
Functional accessories
|

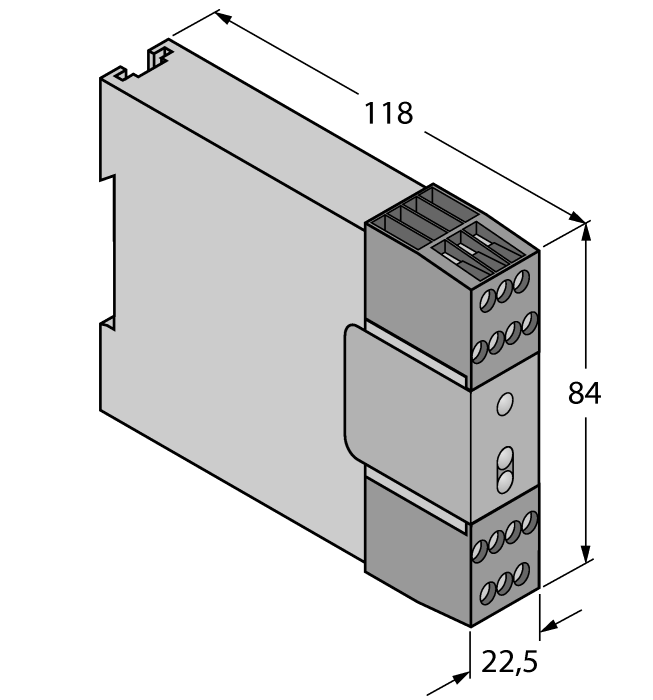

IM73-23-R/24VDC
Interface module, 2 inputs, 3 NO outputs, 24 VDC, provides max. 6 A, 20 ms response time |
7700346 |
|
|
IM73-221-R/24VDC
Interface module, 2 inputs, 2 NO outputs, 1 NC auxiliary output, 24 VDC, provides max. 6 A, 20 ms response time |
7700345 |
