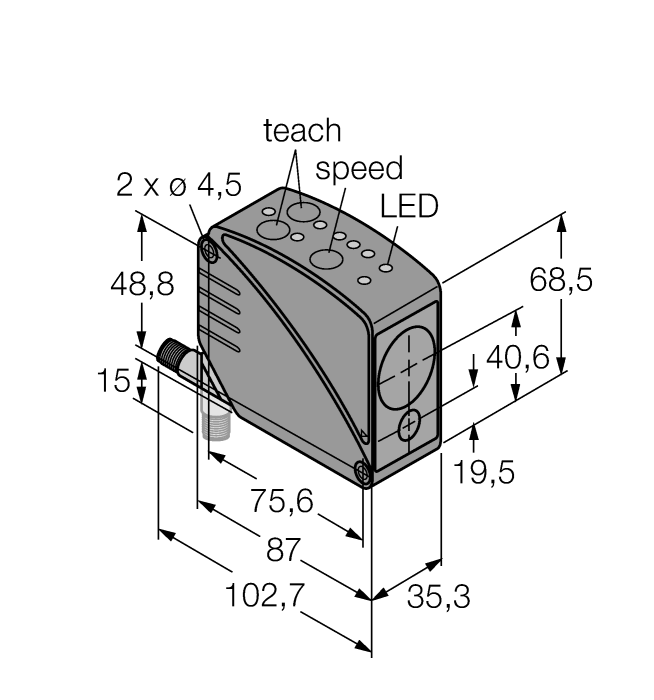

Product DO2L5M-Q68-2ANP5X5-H1181
Photoelectric Sensor
Diffuse Mode Sensor
Laser Running Time Meter
Order number: 7700449- Male, M12 x 1, 8-pin
- Indication of signal intensity
- Protection class IP67
- Measuring range (distance to white object): 5 m
- 3 response times adjustable for switching output
- Operating voltage: 12…24 VDC
- Two independently adjustable switching ranges
General data
| eCl@ss-Code (V5.1.4): | 27270801 -/- Optical distance sensor |
| Customs tariff number | 85437090990 |
| Country of origin | US |
| Weight | 1 g |
Technical Data
| Function | Laser sensor, diffuse mode (time-of-flight) |
| Design | Rectangular |
| Range | 300…5000 mm |
| Light type | Red |
| Laser class | 2 |
| Operating voltage | 12…24 VDC |
| Output function | 2 x NO contact, PNP/NPN |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, ABS, Black |
| Ambient temperature | 0…+50 °C |
| Protection class | IP67 |
| Special features | Laser, Teach input |
Mounting accessories
|

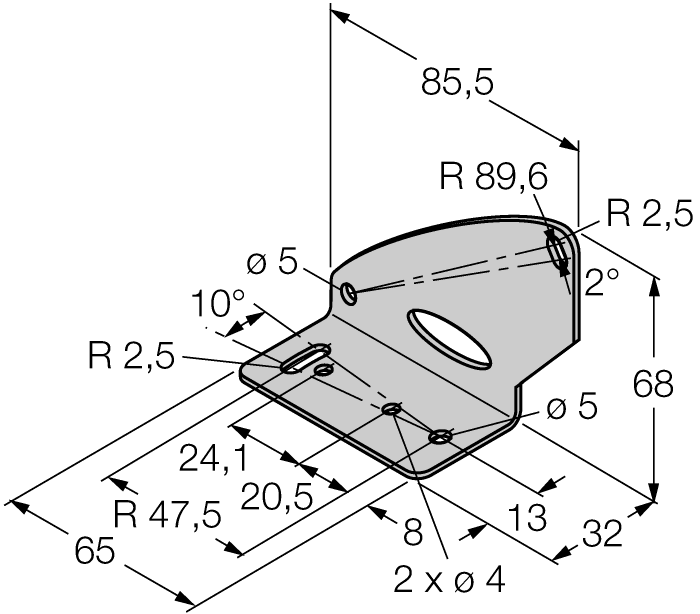

TMBQ68
Mounting bracket, stainless steel, for Q68 |
7700412 |
|

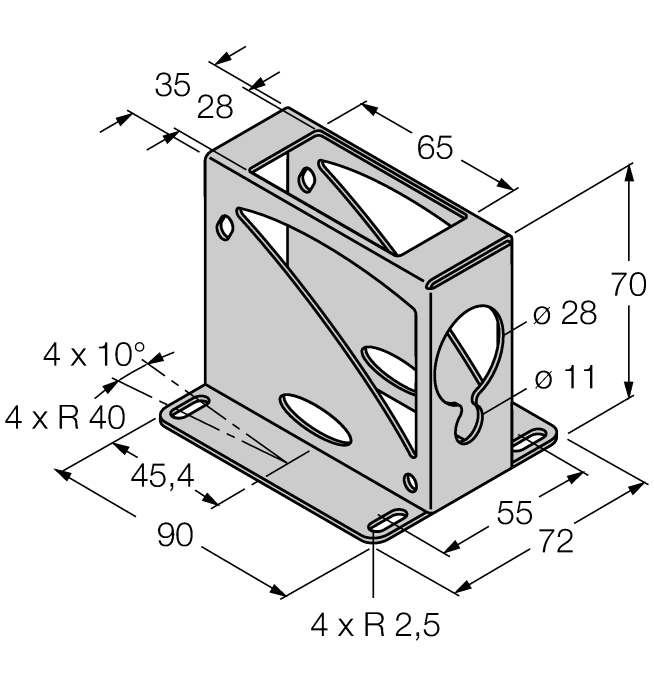

TMBQ68E
Protective housing, stainless steel, for Q68 |
7700413 |
|

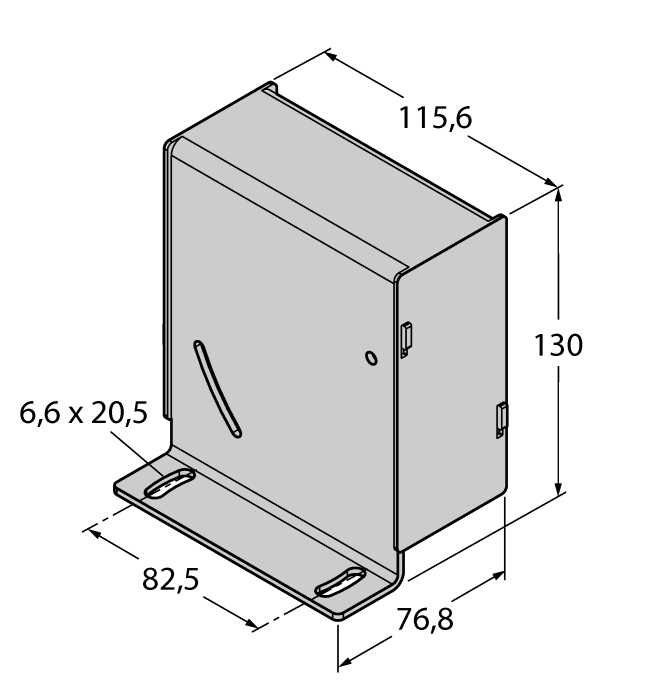

TMBQ68IP
Protective housing, stainless steel, for Q68 |
7700414 |
Connectivity accessories
|

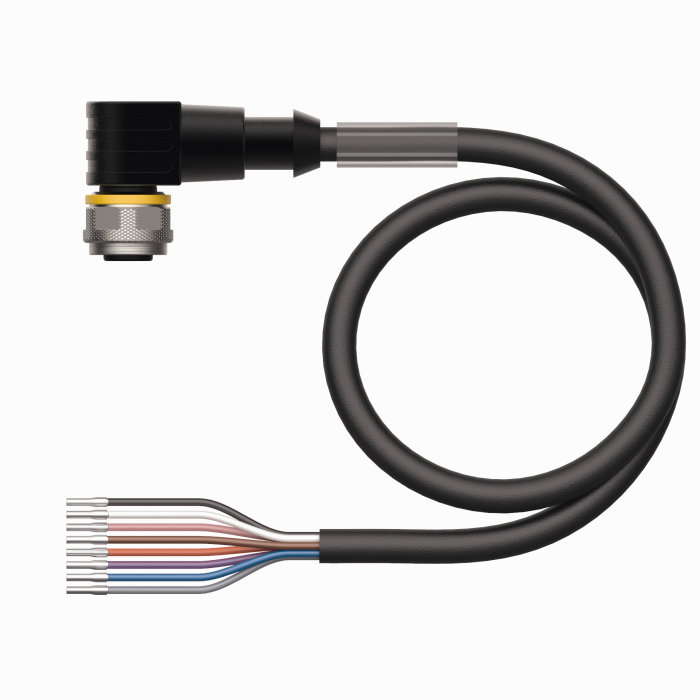

WKC8T-2/TEL
Connection cable, M12 female connector, angled, 8-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625133 |
|
RKC8T-2/TEL
Connection cable, M12 female connector, straight, 8-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625130 |
