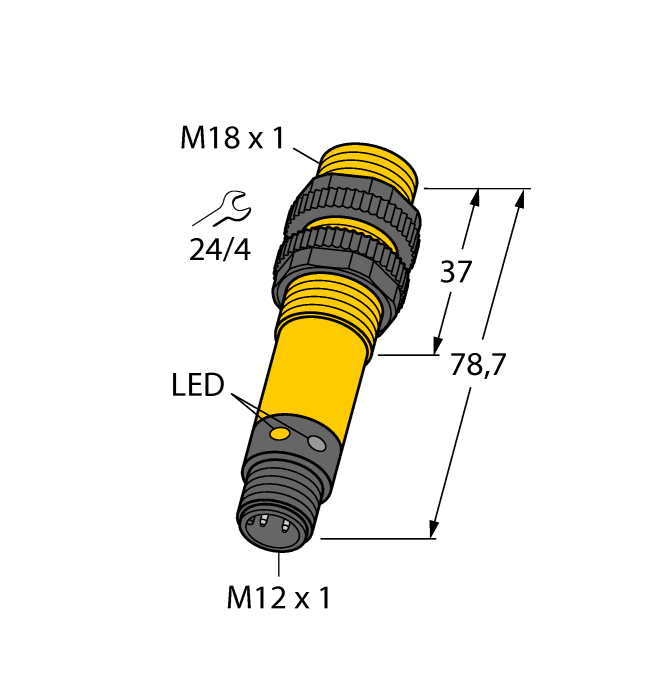

Product EOIR20M-BS18-6X-H1141
Photoelectric Sensor
Opposed Mode Sensor (Emitter)
Order number: 7700627- Male, M12 x 1, 5-pin
- Protection classes IP67 / IP69K
- Ambient temperature: -40…+70° C
- Operating voltage: 10…30 VDC
General data
| eCl@ss-Code (V5.1.4): | 27270901 -/- Opposed mode sensor |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 1 g |
Technical Data
| Function | Opposed mode sensor (emitter) |
| Design | Cylinder, threaded |
| Range | 0…20000 mm |
| Light type | IR |
| Operating voltage | 10…30 VDC |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, PBT |
| Ambient temperature | -40…+70 °C |
| Protection class | IP67/IP69K |
| Special features | Wash down |
