Product RO20M-BT18-VP6X2
Photoelectric Sensor
Opposed Mode Sensor (Receiver)
Order number: 7700660- Cable, PVC, 2 m
- Protection class IP67
- LED, all-round visible
General data
| eCl@ss-Code (V5.1.4): | 27270901 -/- Opposed mode sensor |
| Customs tariff number | 85365019000 |
| Country of origin | CN |
| Weight | 1 g |
Technical Data
| Function | Opposed mode sensor (receiver) |
| Design | Rectangular |
| Range | 0…20000 mm |
| Operating voltage | 10…30 VDC |
| Output function | NO/NC, PNP |
| Current output | 100 mA |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, ABS |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
Mounting accessories
|

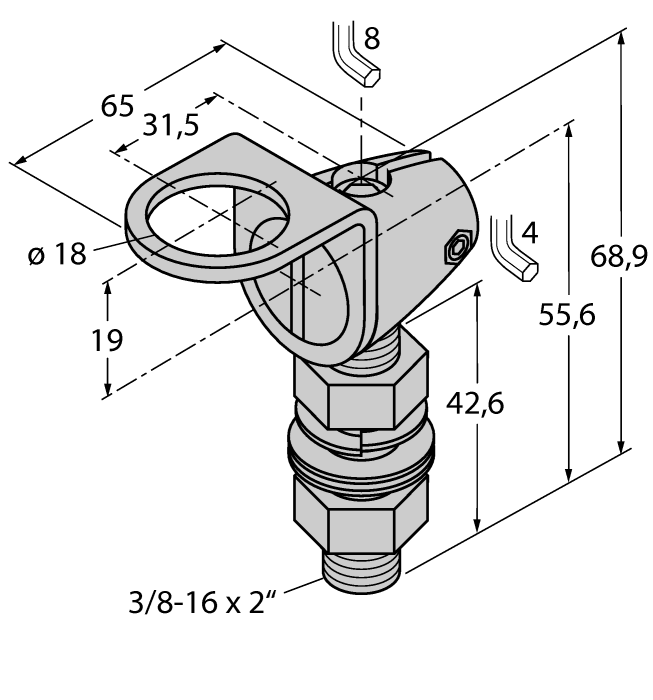

TMBM18FA
Mounting bracket; material VA 1.4401, for 18 mm thread |
7700395 |
|

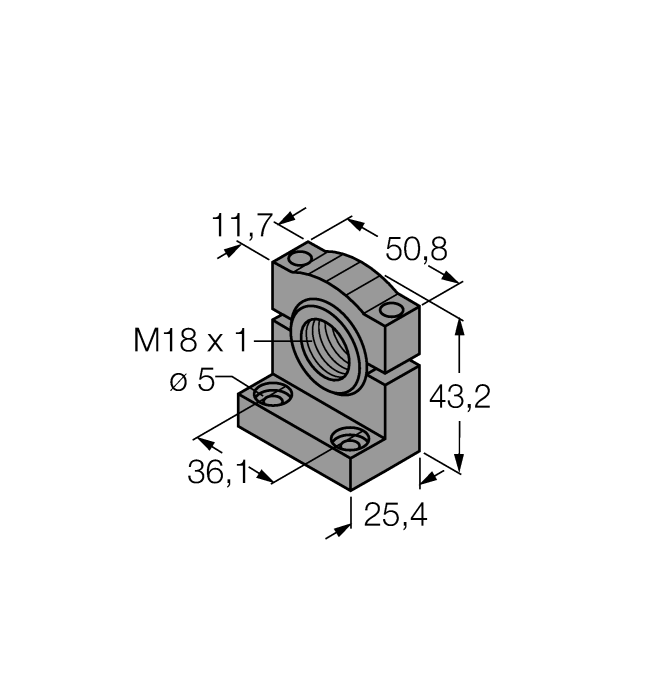

TMB18SF
Mounting bracket, PBT black, for 10 mm thread |
7700396 |
|

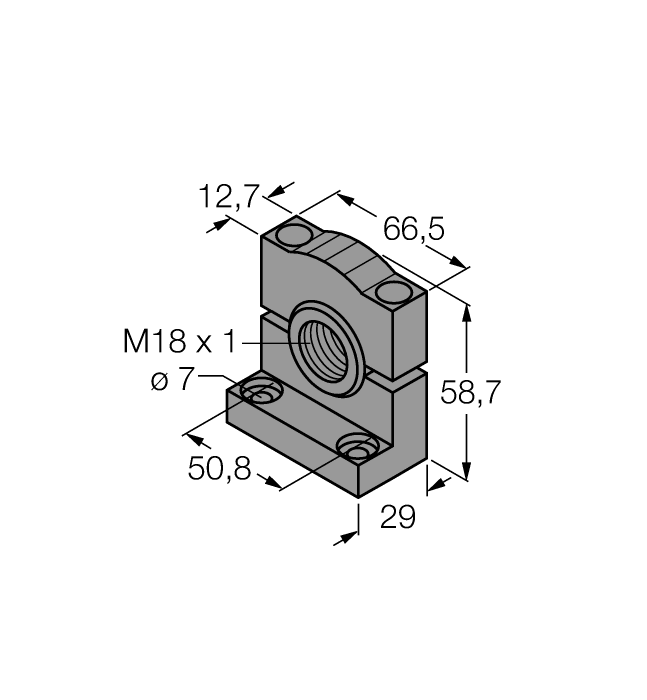

TMB3018SC
Mounting bracket, PBT black, for 18 mm thread |
7700397 |
|
TMBMIS
Mounting bracket, stainless steel, for BT18/BQ18 and ..-MI-.. |
7700401 |
|
TMBBT18Y
Protective housing, stainless steel, for BQ18 |
7700425 |
