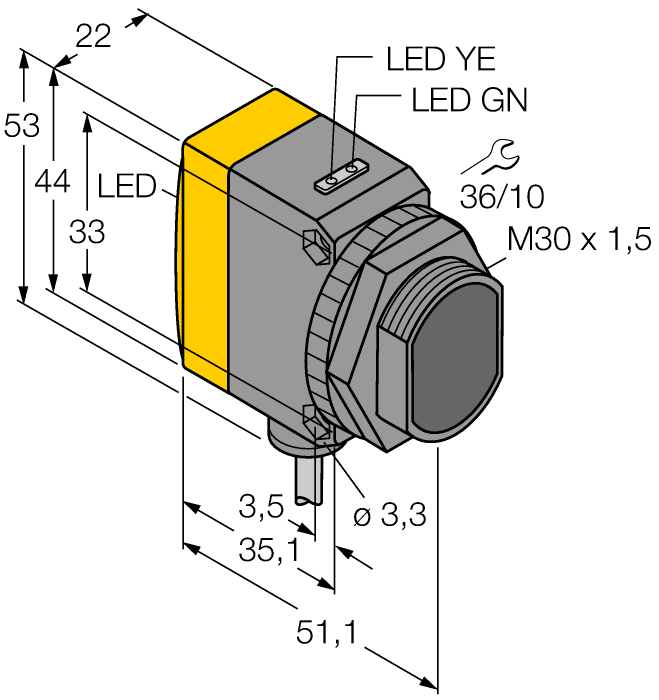

Product LOP8M-BT30-VDZ38X3
Photoelectric Sensor
Retroreflective Sensor with Polarizing Filter
Order number: 7700760- Cable, PVC, 2 m
- Protection class IP67
- LED, all-round visible
- Sensitivity adjusted via potentiometer
- Operating voltage: 12…250 VDC or 24…250 VAC
- Relay output, changeover
General data
| eCl@ss-Code (V5.1.4): | 27270902 -/- Retroreflective sensor |
| Customs tariff number | 85437090990 |
| Country of origin | US |
| Weight | 1 g |
Technical Data
| Function | Retroreflective sensor with polarizing filter |
| Design | Rectangular |
| Range | 0…8000 mm |
| Light type | Red |
| Operating voltage | 24…250 VAC / 12…250 VDC |
| Output function | NO/NC, Relay output |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, ABS, Yellow |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
Mounting accessories
|

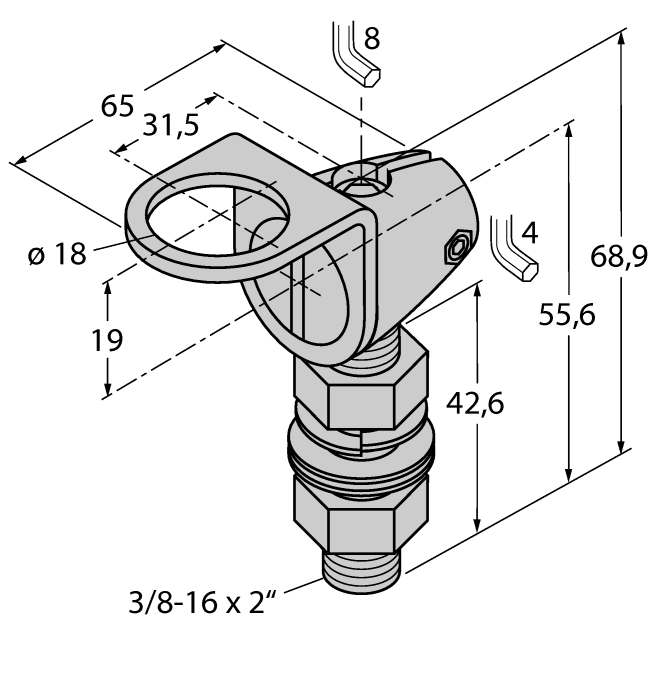

TMBM18FA
Mounting bracket; material VA 1.4401, for 18 mm thread |
7700395 |
|
TMB30SC
Mounting bracket, PBT black; 30 mm thread; with 4 screws M5 x 0.8 |
7700400 |
Functional accessories
|

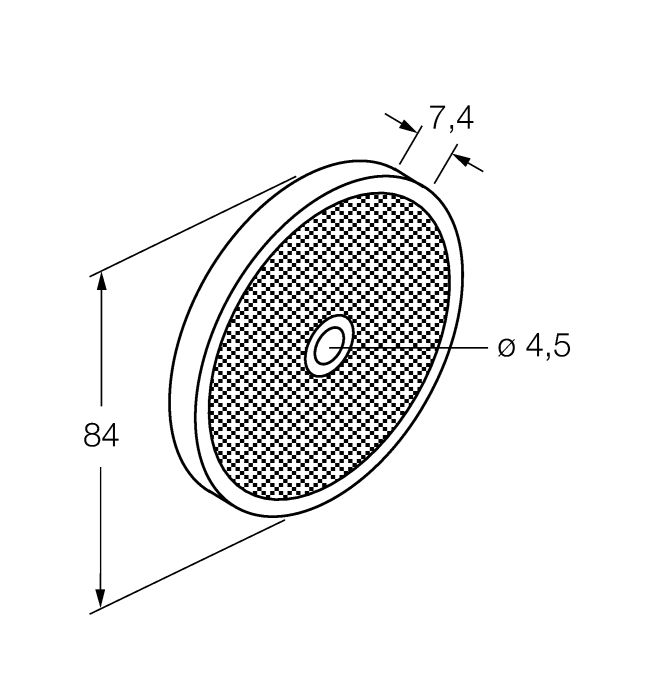

T-BRT-84
Round reflector, reflection coefficient 1.4, material acrylic, ambient temperature -20 … +60 °C |
7700382 |
