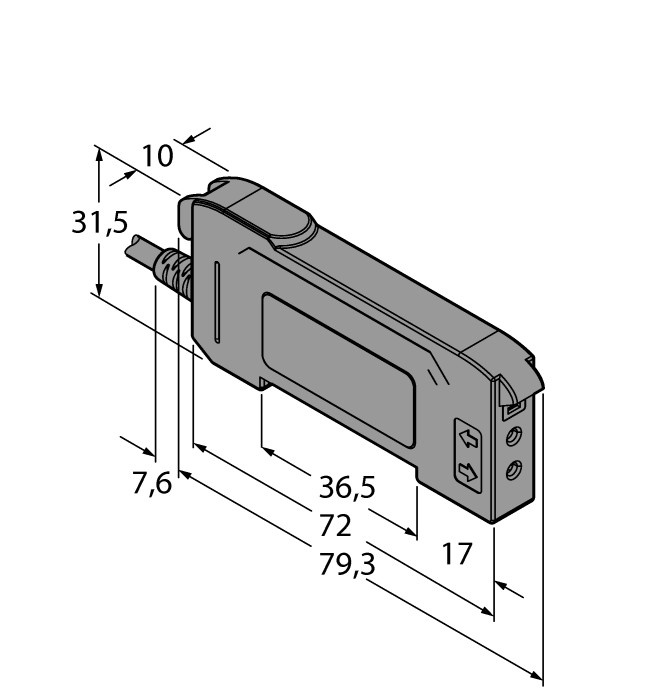

Product FOP-Q30D-VP6X
Photoelectric Sensor
Base Unit for Plastic Fibers
Order number: 7700832- Cable 2 m
- Visible red light
- Programmed via teach line or rocker button
- Operating voltage: 10…30 VDC
- PNP output
- Light/dark operation
General data
| eCl@ss-Code (V5.1.4): | 27270905 -/- Fiber optic sensor |
| Customs tariff number | 85437090990 |
| Country of origin | CN |
| Weight | 192 g |
Technical Data
| Function | Photoelectric sensor for plastic fibers |
| Design | Rectangular |
| Light type | Red |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, ABS, Black |
| Ambient temperature | -10…+55 °C |
| Protection class | IP50 |
| Special features | Pushbutton |
Functional accessories
|

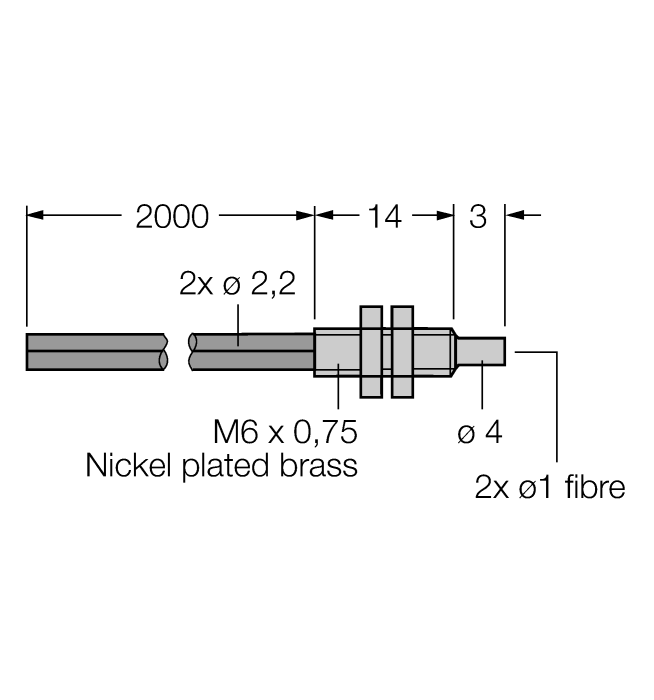

T-PBT46U
Plastic fiber, bifurcated; length: ± 1829 mm; diffuse / retroreflective mode; polyethylene sheath, flexible; operating temperature: -30…+70 °C; cable, straight, customizable; core diameter: 1.0 mm; end sleeve for probe: threaded |
7700815 |
|

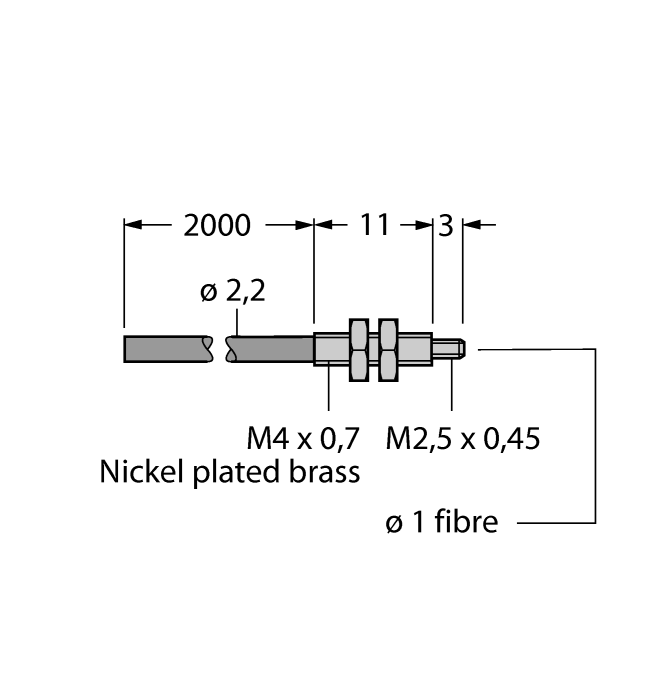

T-PIT46U
Plastic fiber, individual, length: ± 1829 mm: opposed mode; 2 pcs. incl. in delivery; polyethylene sheath, flexible; operating temperature: -30…+70 °C; cable, straight, customizable; core diameter: 1.0 mm; end sleeve for probe, threaded |
7700817 |
