Product VB2-FSW/RSSW RKSW 455-0.5M-0.5M
2-Way Splitter
PROFIBUS Y-splitter, Fully Shielded, 12 Mbps, 2 × 0.5 m Cable Outlet
Order number: U3-00770- PROFIBUS cable: AWG 22/1
- Jacket material: PVC, color: violet
- Jacket diameter: 8.5 mm
- UL approval
- Cable length: 0.5 m
General data
| EAN | 4047101059281 |
| eCl@ss-Code (V5.1.4): | 27250314 -/- Connection technology |
| Customs tariff number | 85444290900 |
| Country of origin | MX |
| Weight | 148 g |
Technical Data
| Application | Data |

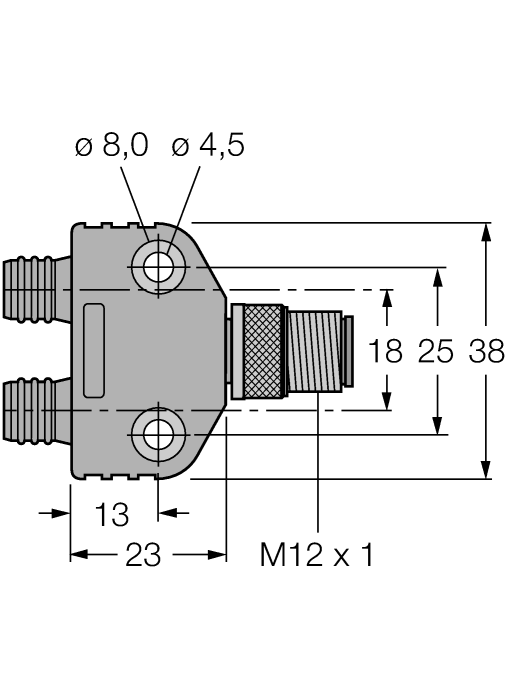

| Design | Y-splitter with cable |

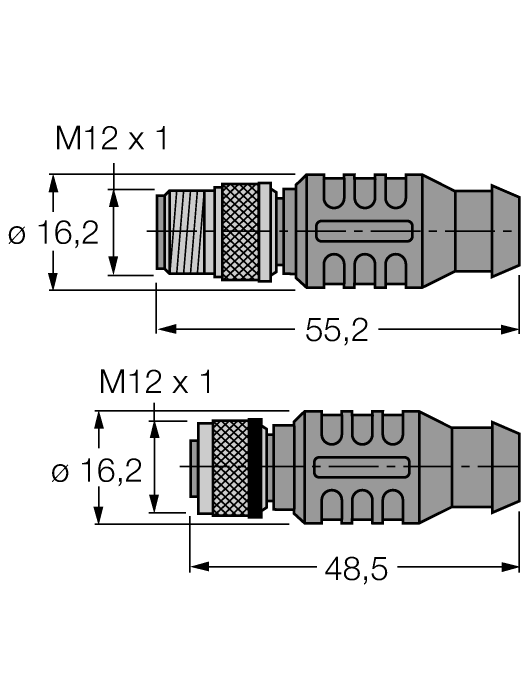

| Connector A | Male, M12 × 1, Straight |
| Connector B | Female Connector, Male Connector, M12 × 1, Straight |
| Network protocol | PROFIBUS-DP |
| Voltage | 250 V |
| Cable length | 0.50 m |
| Cable jacket | PVC, Violet |
| Approvals | UL, CSA |
