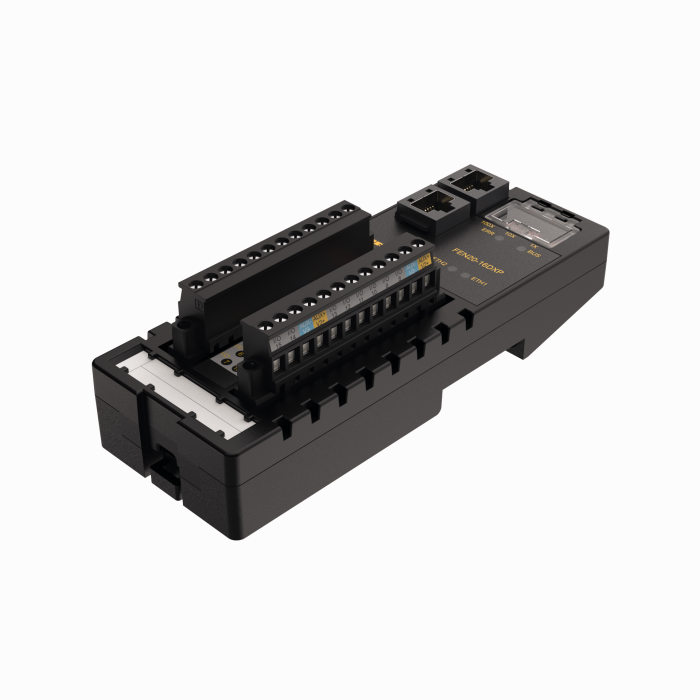

Product FEN20-16DXP
Compact IP20 multiprotocol Ethernet I/O module
16 universal digital channels
Order number: 6931089- FLC/ARGEE programmable
- EtherNet/IP slave
- Modbus TCP slave
- PROFINET slave
- 2 RJ45 ports for the Ethernet connection
- Integrated Ethernet switch
- 10/100 Mbps
- DIN rail mount housing
- 16 universal digital channels, DI / DO
- 24 VDC, PNP
- Output current: 1.0 A
- Protection class IP20
General data
| EAN | 4047101308655 |
| eCl@ss-Code (V5.1.4): | 27250302 -/- Digital I/O module (periphery) |
| Customs tariff number | 85176200000 |
| Country of origin | US |
| Weight | 188.241 g |
Technical Data
| Network protocol | Modbus TCP, PROFINET, EtherNet/IP |
| Signal type | Digital input/output, Digital output, Digital input |
| Connection technology signal | Screw terminal |
| Device type | I/O Module, Compact station, Field Logic Controller (ARGEE) |
| Transmission rate Ethernet | 10/100 Mbps, full/half duplex, autonegotiation, autocrossing |
| Connection technology Ethernet | 2 × RJ45 |
| Ambient temperature | -40…+70 °C |
| Protection class | IP20 |
| Approvals | cULus |
