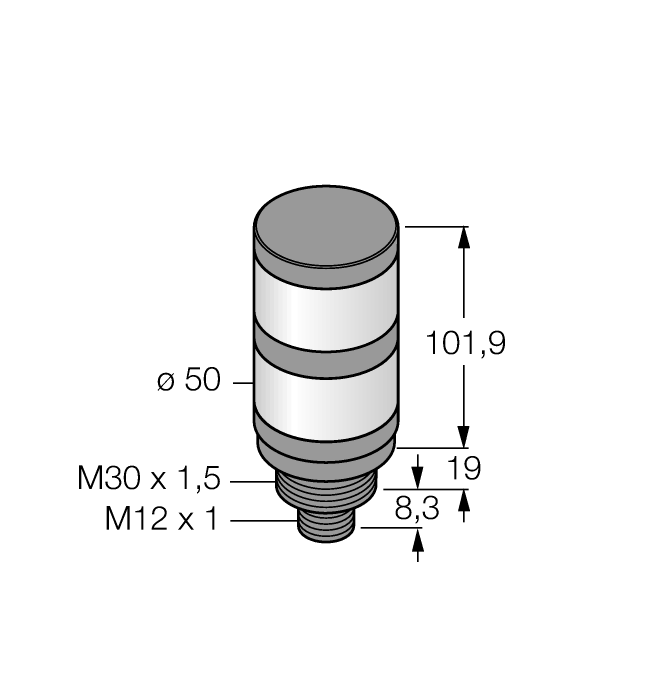

Product ILGR-K50-5X2-H1141
LED
Tower light
Order number: 7700558- Plastic housing, black
- EMI and RFI immune
- Protection class IP67
- Male M12 x 1
- Multicolor: Green (COL 1) / Red (COL 2)
- Operating voltage: 18…30 VDC or 21…27 VAC
- Inputs: PNP/NPN
General data
| eCl@ss-Code (V5.1.4): | 27371201 -/- Indicator |
| Customs tariff number | 85414100000 |
| Country of origin | US |
| Weight | 172 g |
Technical Data
| Light type | Green, Red |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, ABS |
| Window material | Plastic, diffuse |
| Ambient temperature | -40…+50 °C |
| Protection class | IP67 |
Mounting accessories
|

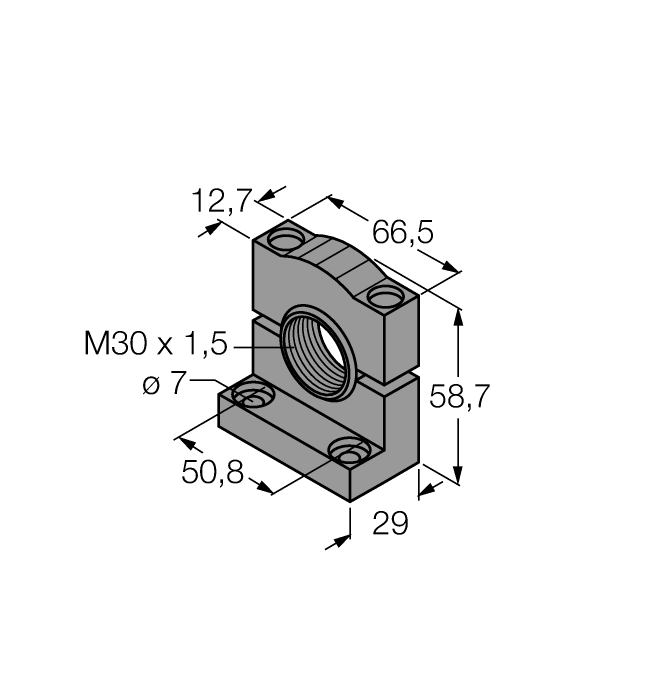

TMBM30FA
Mounting bracket, stainless steel, for 30 mm thread |
7700398 |
|
TMB30SC
Mounting bracket, PBT black; 30 mm thread; with 4 screws M5 x 0.8 |
7700400 |
Connectivity accessories
|
RKC4.5T-2/TEL
Connection cable, M12 female connector, straight, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625016 |
|
WKC4.5T-2/TEL
Connection cable, M12 female connector, angled, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625028 |
