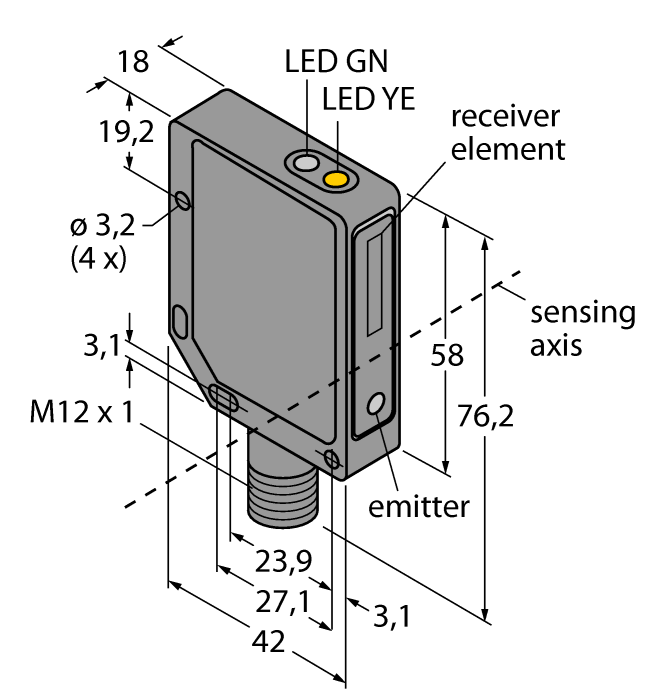

Product DOIR6M-BRM42-VP6X2-H1141
Photoelectric Sensor
Diffuse Mode Sensor
Order number: 7700757- Male, M12 x 1, 4-pin
- Metal housing, ZN, black
- Protection class IP67
- Sensitivity adjusted via potentiometer
- Operating voltage 10…30 VDC
- PNP switching output
- Light/dark operation
General data
| eCl@ss-Code (V5.1.4): | 27270903 -/- Diffuse mode sensor, energy-efficient |
| Customs tariff number | 85437090990 |
| Country of origin | US |
| Weight | 1 g |
Technical Data
| Function | Diffuse mode sensor |
| Design | Rectangular |
| Range | 10…6000 mm |
| Light type | IR |
| Operating voltage | 10…30 VDC |
| Output function | NO/NC, PNP |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Metal, ZN, Black-finished |
| Ambient temperature | -20…+55 °C |
| Protection class | IP67 |
