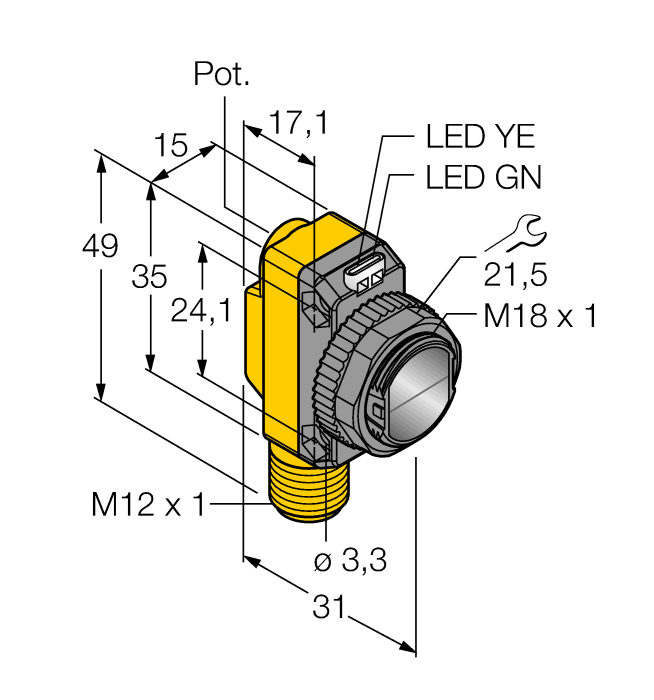

Product LOP3.5M-BT18-VN6X2-H1141
Photoelectric Sensor
Retroreflective Sensor with Polarizing Filter
Order number: 7700663- Male, M12 x 1, 4-pin
- Protection class IP67
- LED, all-round visible
- Sensitivity adjusted via potentiometer
- Operating voltage: 10…30 VDC
- NPN switching output, changeover
General data
| eCl@ss-Code (V5.1.4): | 27270902 -/- Retroreflective sensor |
| Customs tariff number | 85437090990 |
| Country of origin | CN |
| Weight | 1 g |
Technical Data
| Function | Retroreflective sensor with polarizing filter |
| Design | Rectangular |
| Range | 50…3500 mm |
| Light type | Red |
| Operating voltage | 10…30 VDC |
| Output function | NO/NC, NPN |
| Current output | 100 mA |
| Electrical connection | Connector, M12 × 1 |
| Housing material | Plastic, ABS |
| Ambient temperature | -20…+70 °C |
| Protection class | IP67 |
Mounting accessories
|
TMBM18FA
Mounting bracket; material VA 1.4401, for 18 mm thread |
7700395 |
|
TMB18SF
Mounting bracket, PBT black, for 10 mm thread |
7700396 |
|
TMB3018SC
Mounting bracket, PBT black, for 18 mm thread |
7700397 |
|
TMBMIS
Mounting bracket, stainless steel, for BT18/BQ18 and ..-MI-.. |
7700401 |
|
TMBBT18Y
Protective housing, stainless steel, for BQ18 |
7700425 |
Functional accessories
|

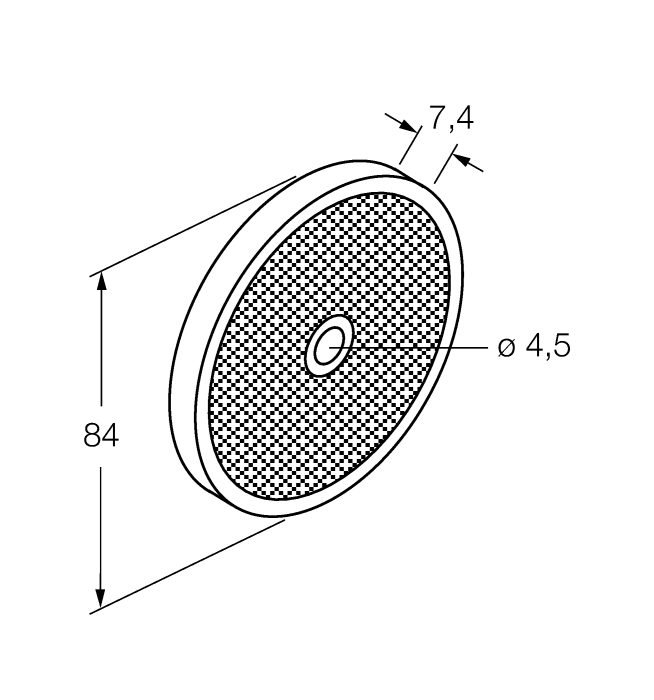

T-BRT-84
Round reflector, reflection coefficient 1.4, material acrylic, ambient temperature -20 … +60 °C |
7700382 |
