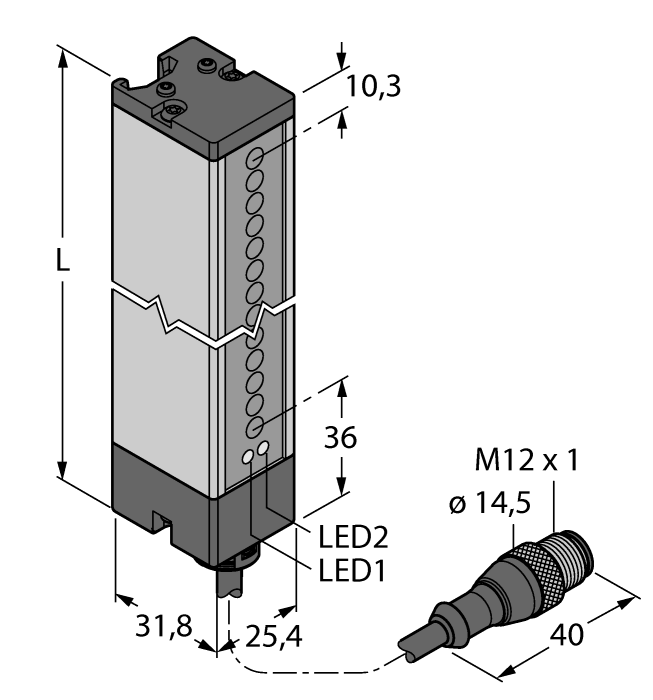

Product EO2M-Q32L67-6X2-H1151-0.15
Photoelectric Sensor
Opposed Mode Sensor (Emitter)
Emitter
Order number: 7700466- Cable with male end, M12 x 1, 5-pin, 0.15 m
- Protection class IP65
- Scan field 67 mm
- Minimum target size 9.5 mm
- Operating voltage: 10…30 VDC
- Programmable connection for reduced sensing range
General data
| eCl@ss-Code (V5.1.4): | 27270910 -/- Light grid |
| Customs tariff number | 85365019000 |
| Country of origin | US |
| Weight | 154 g |
Technical Data
| Function | Light screen |
| Design | Rectangular |
| Range | 150…2000 mm |
| Scan field | 67 mm |
| Optical resolution | 9.5 mm |
| Light type | IR |
| Operating voltage | 10…30 VDC |
| Electrical connection | Cable with connector, M12 × 1 |
| Cable length | 0.150 m |
| Housing material | Metal, AL, Grey |
| Ambient temperature | -20…+70 °C |
| Protection class | IP65 |
Mounting accessories
|

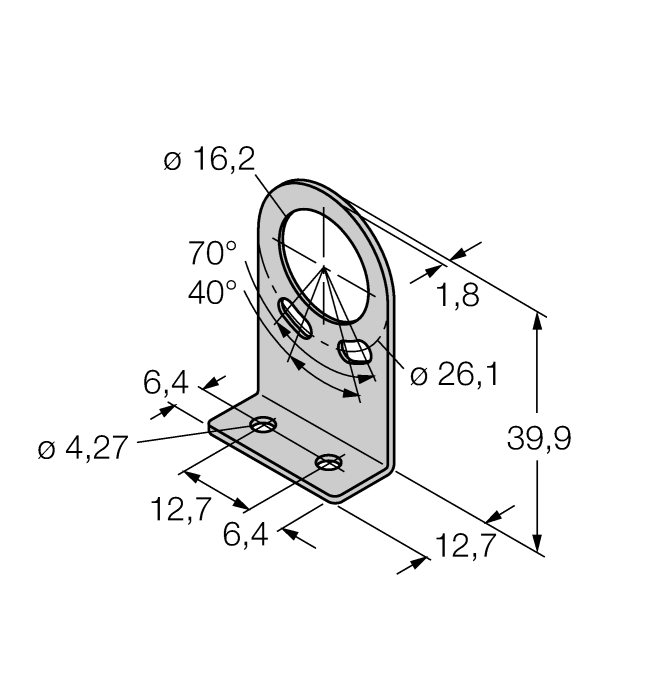

TMBQ32
Mounting bracket, stainless steel, for Q32L67 |
7700415 |
|

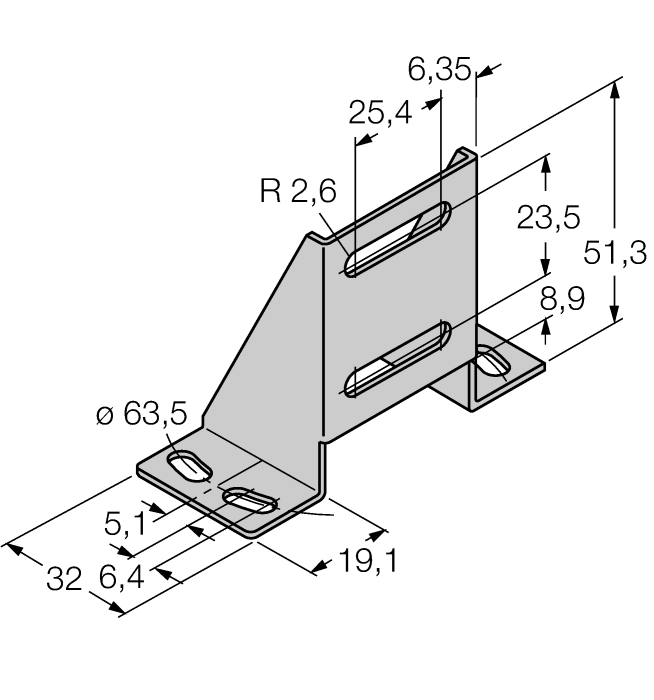

TMBQ32R
Foot, for Q32L67 |
7700416 |
Connectivity accessories
|
WKC4.5T-2/TEL
Connection cable, M12 female connector, angled, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625028 |
|
RKC4.5T-2/TEL
Connection cable, M12 female connector, straight, 5-pin, cable length: 2 m, jacket material: PVC, black; cULus approval |
6625016 |
