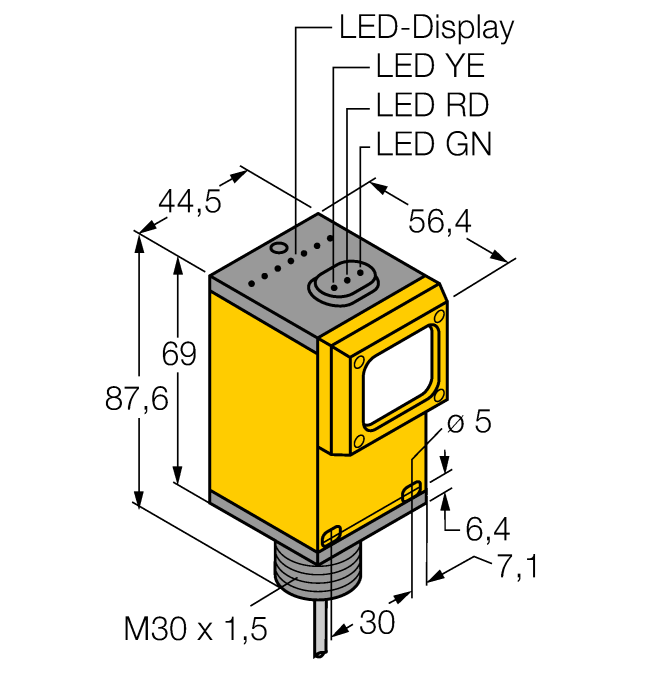

Product LO2L70M-Q45-ANP6X2
Photoelectric Sensor
Retroreflective Laser Sensor
Order number: 7700553- Retroreflective laser sensor
- Laser class 2

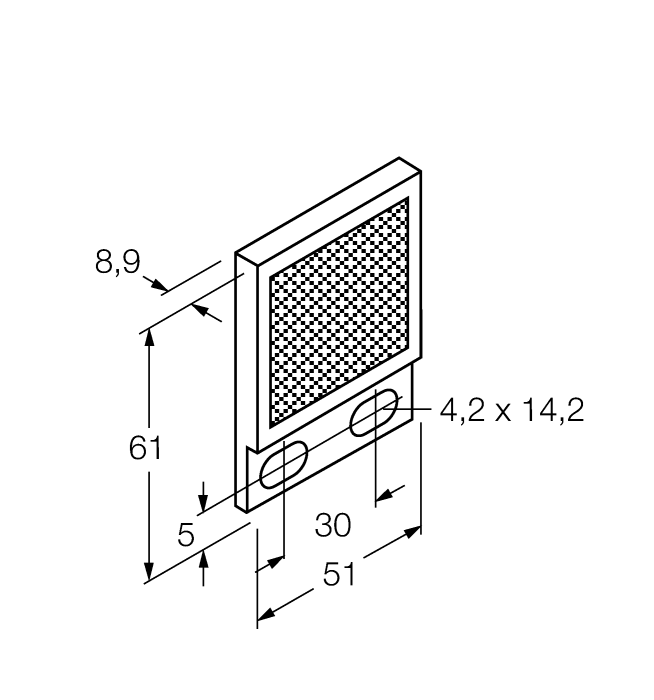

- Reflector BRT-2X2 included in delivery
- Sensitivity adjusted via potentiometer
- Operating voltage: 10…30 VDC
- Switching output, bipolar
- Light or dark operation, adjusted via switch
General data
| eCl@ss-Code (V5.1.4): | 27270902 -/- Retroreflective sensor |
| Customs tariff number | 85437090990 |
| Country of origin | US |
| Weight | 1 g |
Technical Data
| Function | Retroreflective sensor |
| Design | Rectangular |
| Range | 80…70000 mm |
| Light type | Red |
| Laser class | 2 |
| Operating voltage | 10…30 VDC |
| Output function | NO contact, PNP/NPN |
| Electrical connection | Cable |
| Cable length | 2.0 m |
| Housing material | Plastic, PBT |
| Ambient temperature | -10…+40 °C |
| Protection class | IP67 |
| Special features | Laser |
Mounting accessories
|
TMBM30FA
Mounting bracket, stainless steel, for 30 mm thread |
7700398 |
|
TMB30SC
Mounting bracket, PBT black; 30 mm thread; with 4 screws M5 x 0.8 |
7700400 |
Functional accessories
|
T-BRT-2X2
Round reflector, reflection coefficient 1.0, material acrylic, ambient temperature -20 … +50 °C |
7700368 |
